Tube and Pipe Saw / Pipe Cutting Machine / Supplier And Exporter


Tube and Pipe Saw / Pipe Cutting Machine Tube and Pipe Saw / Pipe Cutting Machine Tube and Pipe Saw / Pipe Cutting Machine Tube and Pipe Saw / Pipe Cutting Machine Tube and Pipe Saw / Pipe Cutting Machine

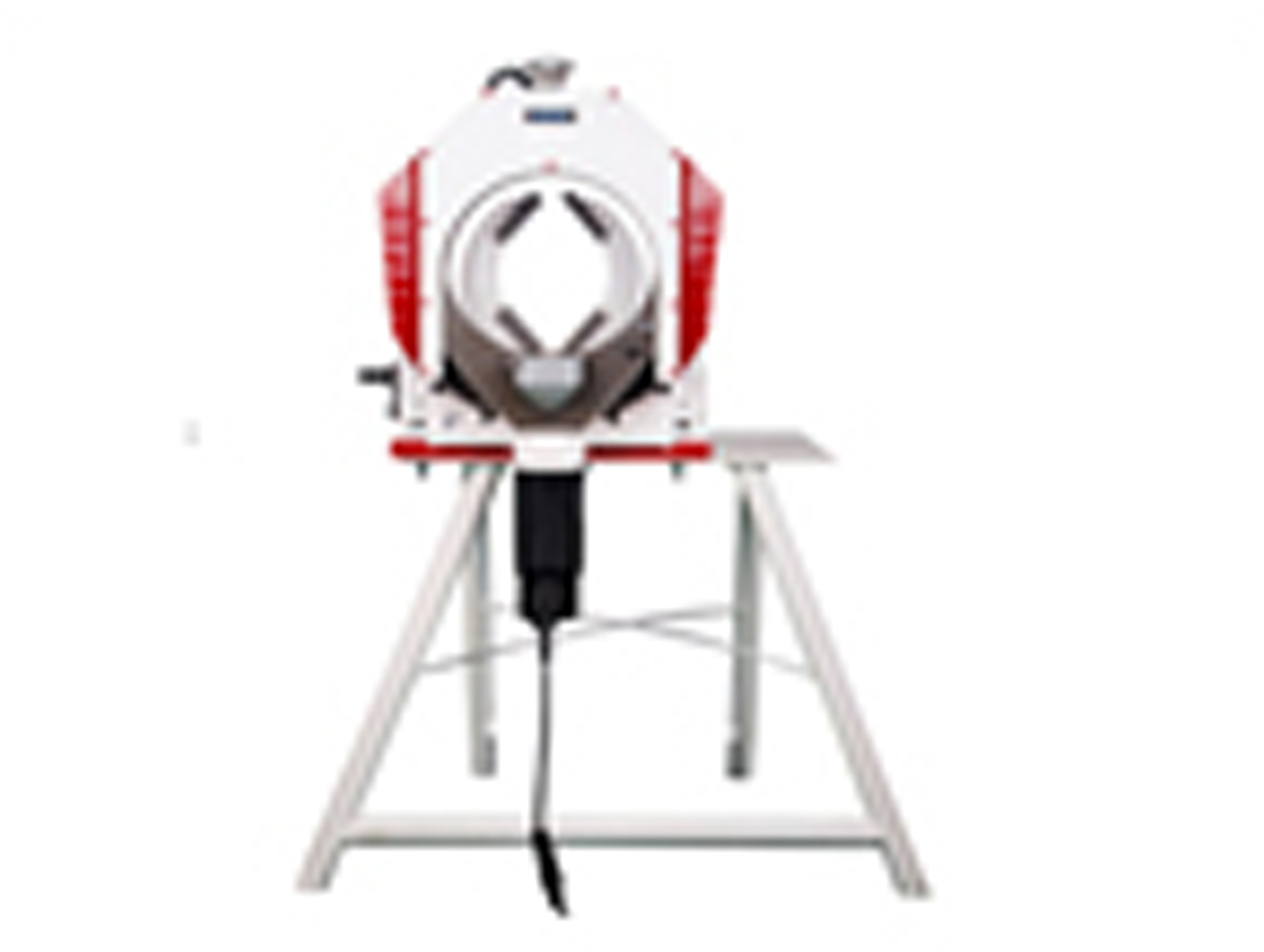

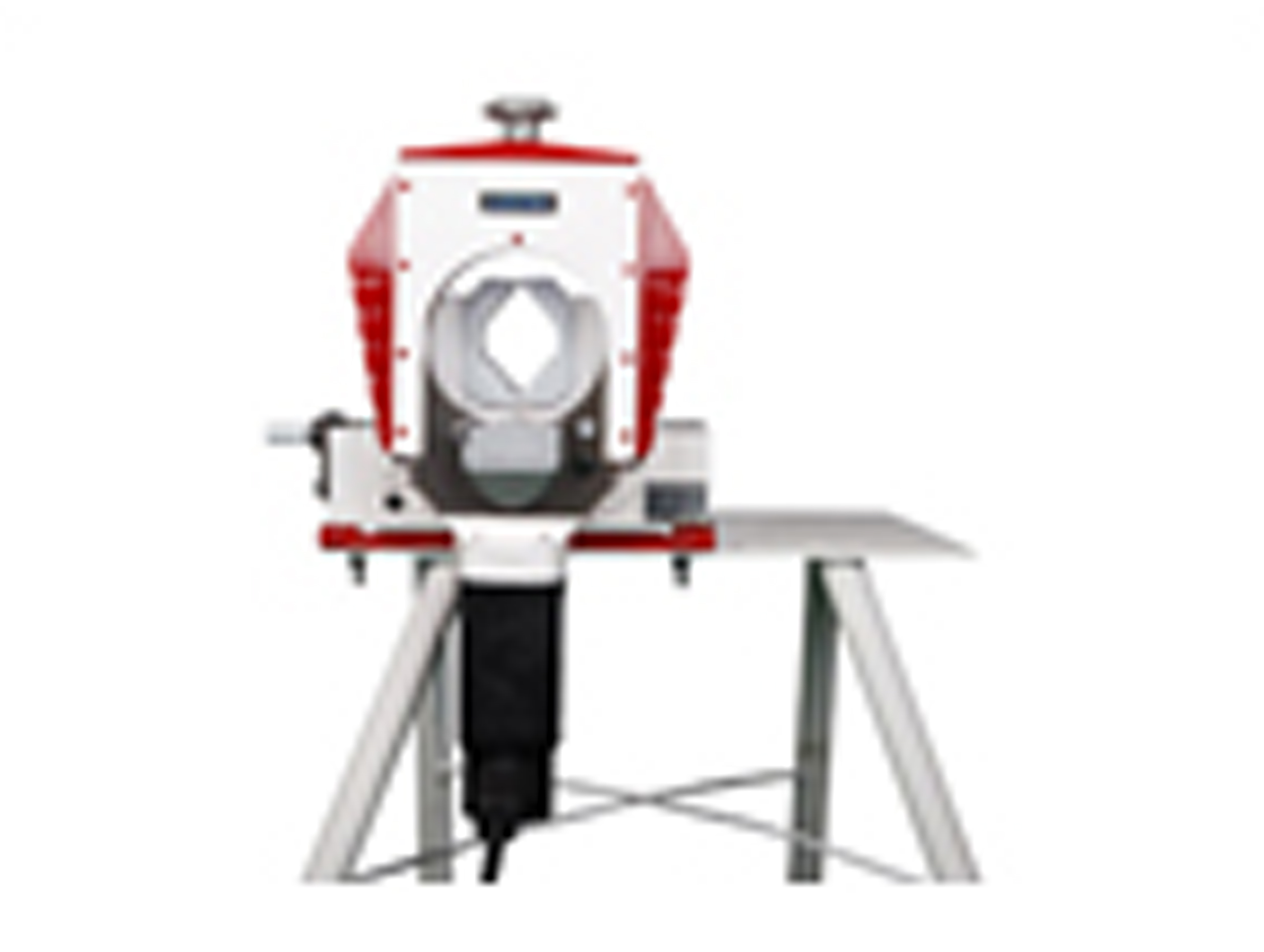

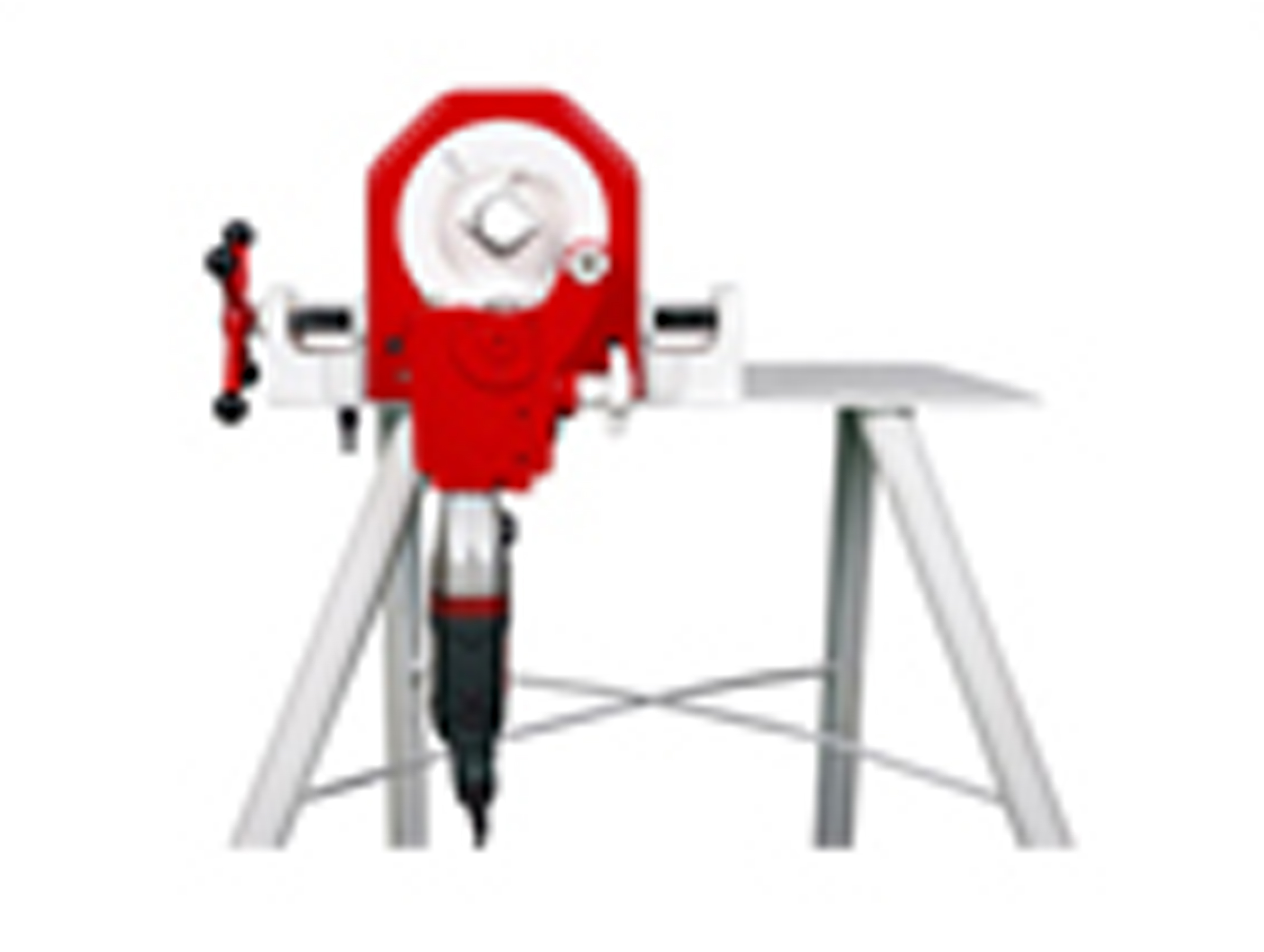

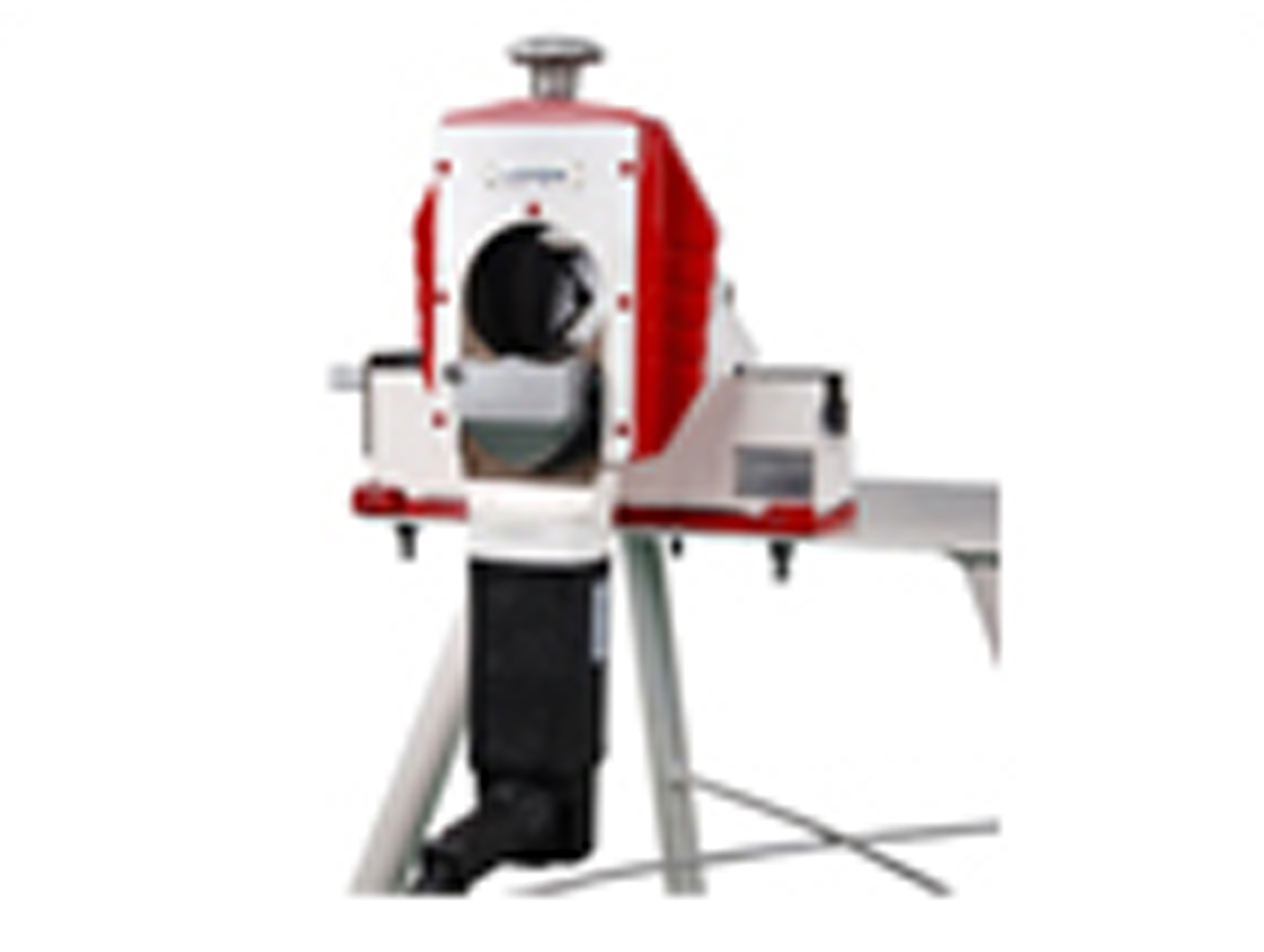

VG Orbital Pipe Saws are the cost effective and reliable solution to square cut and bevel almost all types of metal pipe. All R Series orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any additional preparation work on the cut-off face for orbital welding.


ADVANTAGES :

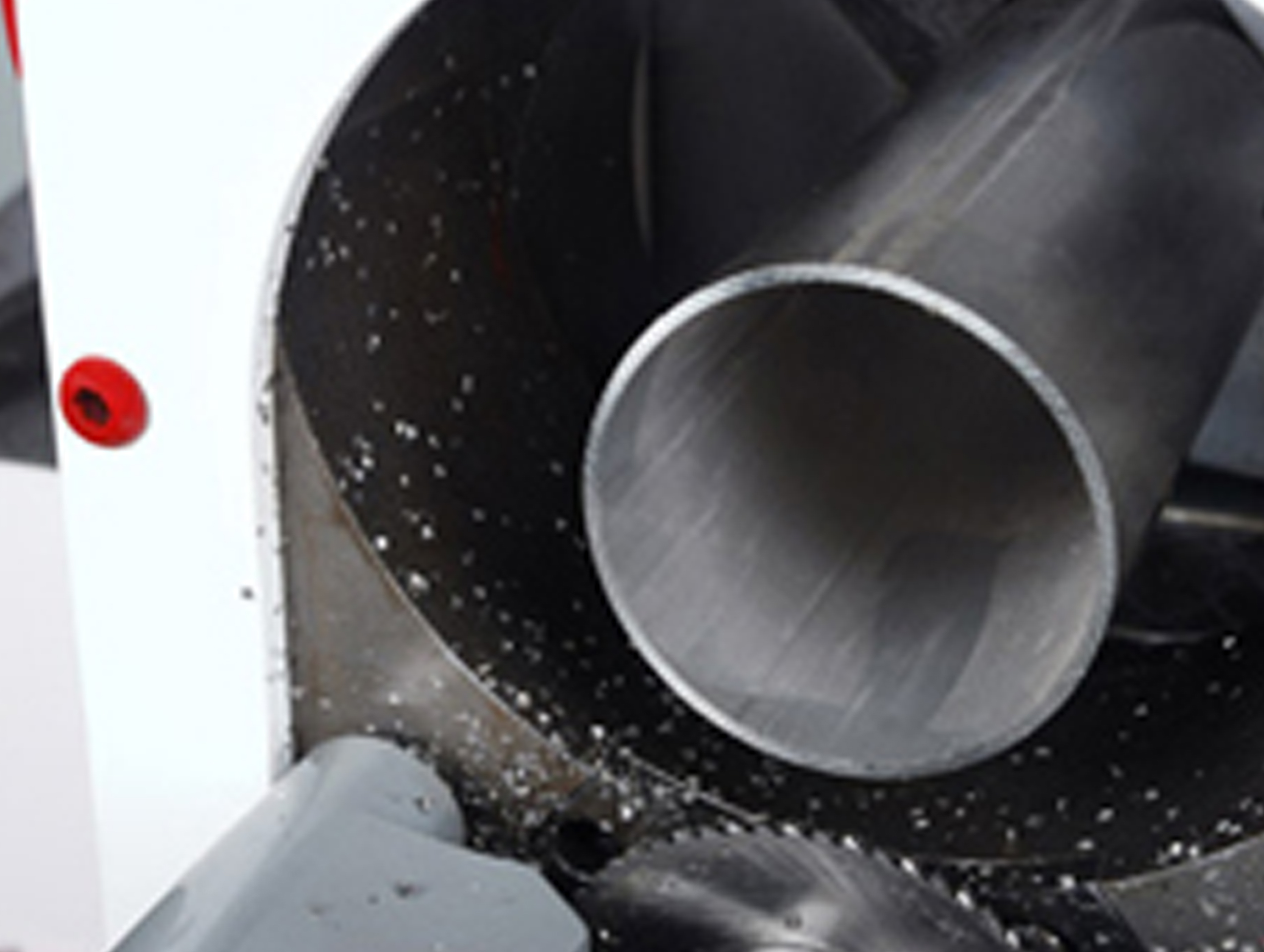

  The orbital pipe saw can deliver precisely straight cut, burr-free, is ideal for cutting stainless steel pipe
  The pipe saw adopt cold cut to prevent thermal distortion, is the cutting solution for material like stainless pipe, copper etc, carbon steel, etc.

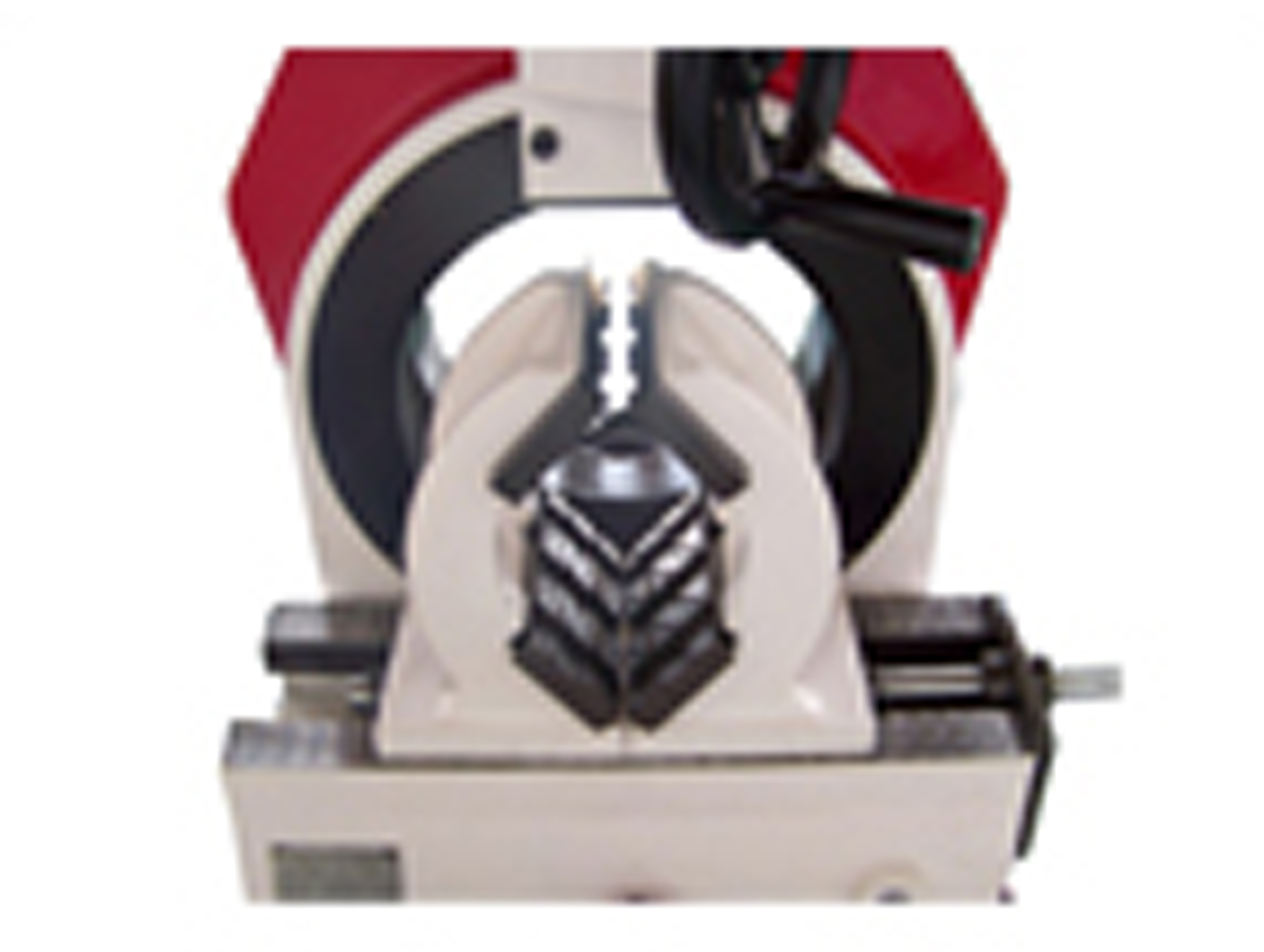

  The pipe saw/pipe cutter has fast pipe clamping, deformation-free clamping system
  The pipe saw can be easily set up regardless of the pipe diameter
  The pipe saw is easy to operate, almost no training is needed
  The pipe saw only take a few seconds to fnish the cut with one single rotation around the pipe
  The pipe saw can do simultaneous cutting and beveling with beveling blade mounted in addition to cutting blade
  The cutting speed regulation can be adjusted to cut different wall thickness pipe


Specification :
Model VG Lite4 VG Lite6 VG4 VG6 VG8 VG12
Pipe OD ¼”-4” 2”-6” ½”-4” 3”-6” 6”-8” 8”-12”
6-120 mm 80-182 mm 19-120 mm 85-182 mm 150-230 mm 215-325 mm
Wall thickness 0.02”-0.12” 0.02”-0.12” 0.04”-0.22” 0.08”-0.4” 0.08”-0.4” 0.08”-0.4”
0.5-3 mm 0.5-3 mm 1-7 mm 2-10 mm 2-10 mm 2-10 mm
Motor 1000 w 1000 w 1600 w 1600w 1600w 1600w
Blade RPM 30-150 30-150 150-250 150-250 150-250 150-250
Voltage/ Frequency 110/220 V
50/60 Hz
110/220 V
50/60 Hz
110/220 V
50/60 Hz
110/220 V
50/60 Hz
110/220 V
50/60 Hz
110/220 V
50/60 Hz
Net Weight 25 kg 28 kg 75 kg 90 kg 110 kg 130 kg
55 lb 57 lb 165 lb 198 lb 242 lb 286 lb
Application
  • Thin-wall stainless-steel tubes
  • Stainless steel pips
  • Low and unalloyed steel
  • Casting materials, non-ferrous metal
  • Copper, aluminum and plastic pipes

Operation Procedure :

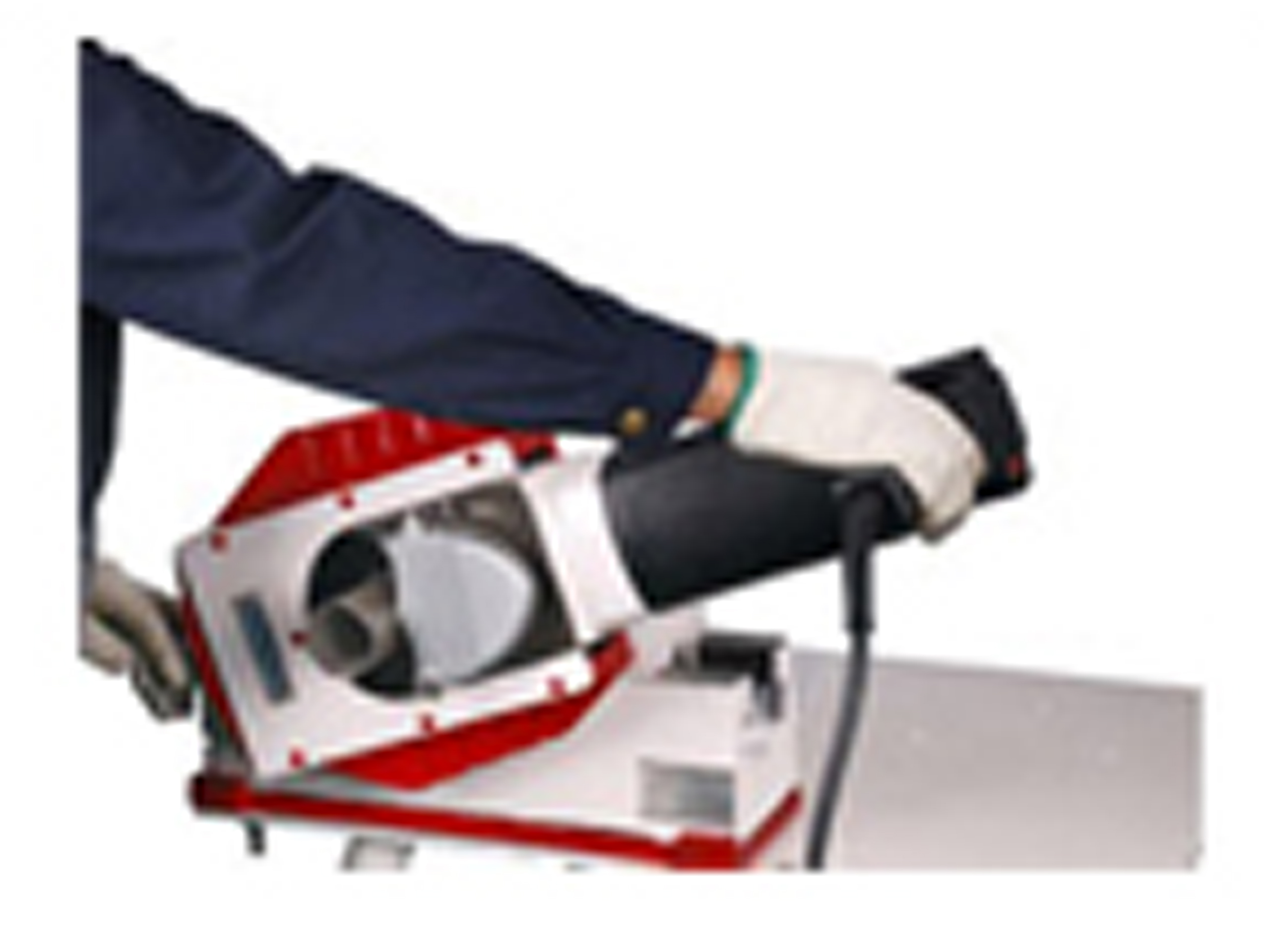

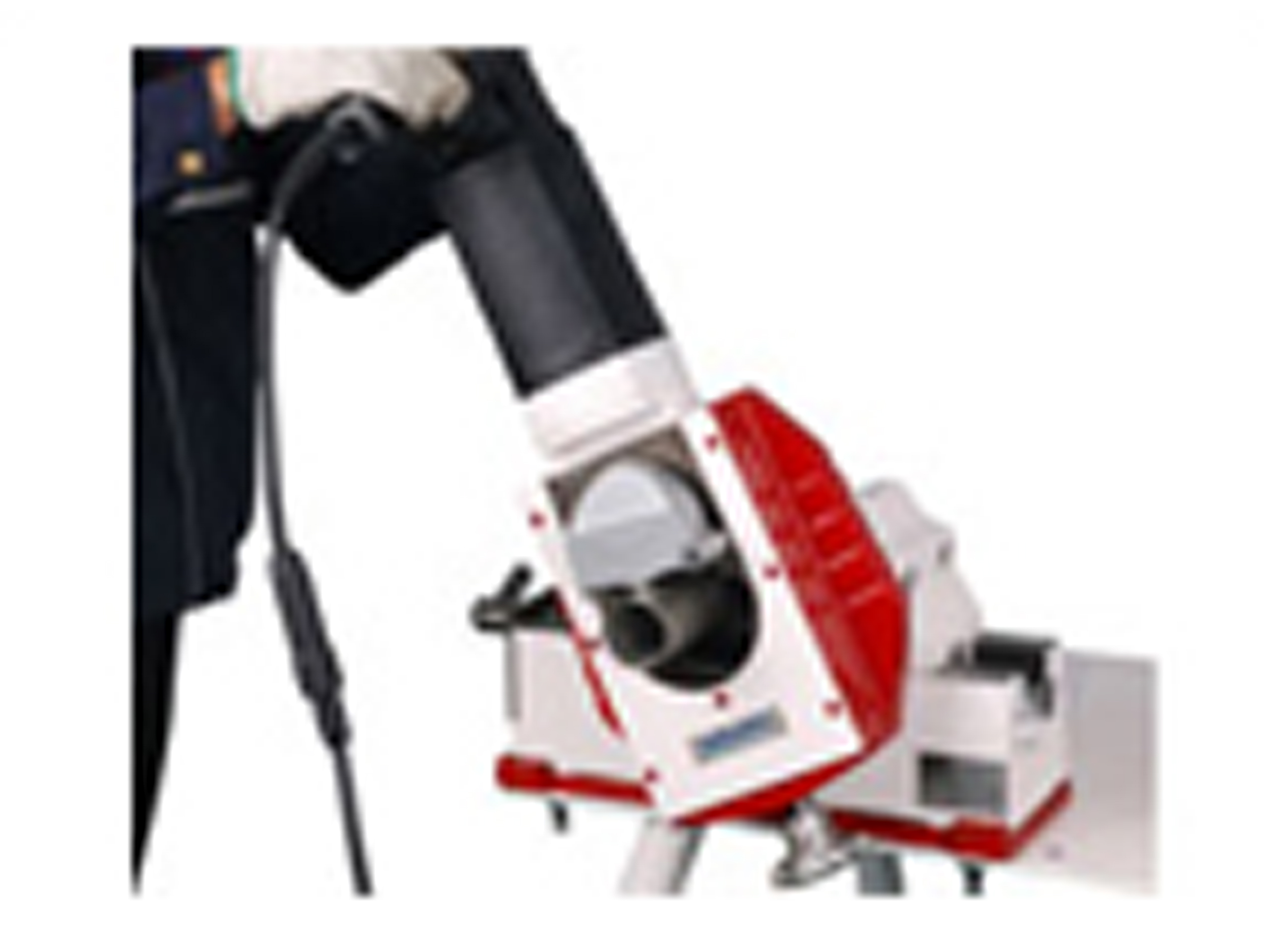

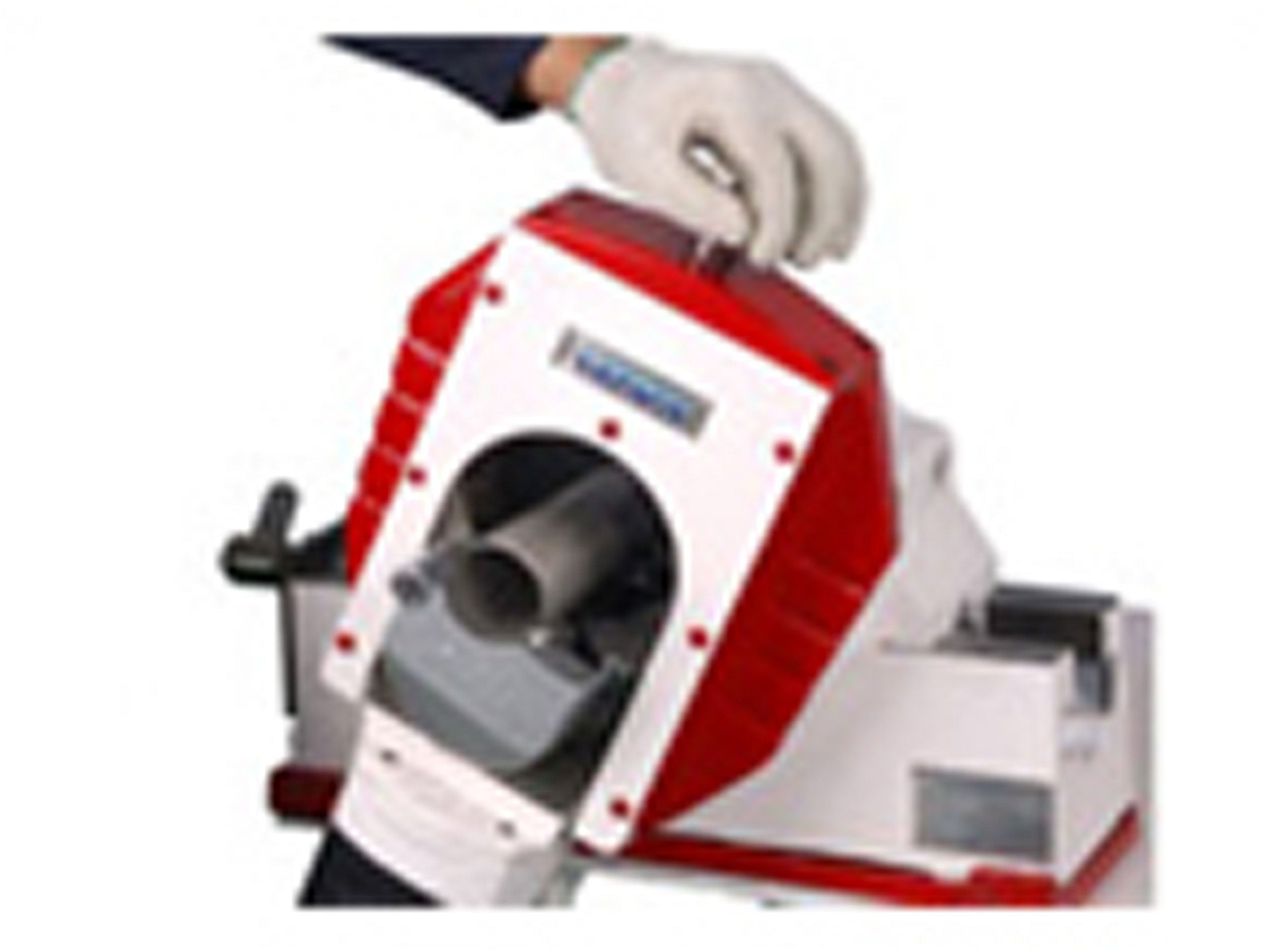

Cutting is executed by manually rotating the machine housing 360 degree around the pipe and then, with a circular toothed blade driven by 1600 watt motor, the pipe is cut with one single rotation. It is powered by a powerful and sturdy electric motor equipped with six speed regulators.
Tube and Pipe Saw / Pipe Cutting Machine Tube and Pipe Saw / Pipe Cutting Machine Tube and Pipe Saw / Pipe Cutting Machine

Packages :
Model L x H x H (mm) Net Weight (Kg) Gross Weight (Kg)
VG4 820 x 540 x 470mm 75 100
VG6 920 x 870 x 570mm 90 117
VG8 1050 x 590 x 670mm 150 133
VG12 1050 x 590 x 790mm 126 155

One pipe cutting / beveling machine set will include the following items. Please inform the manufacturer or forwarder of any missing parts or transportation damage immediately.

Tube and Pipe Saw / Pipe Cutting Machine 1. One pipe cutting / bevelling machine
2. One base plate
3. Three standard class blades
4. One ring spanners (SW22)
5. Two hexzgon socket head wrenches
6.One tube of VG saw blade lubricant
7. One operation manual
8. One spare parts list
