Clinox Power / Supplier And Exporter
Weld Cleaning Machines

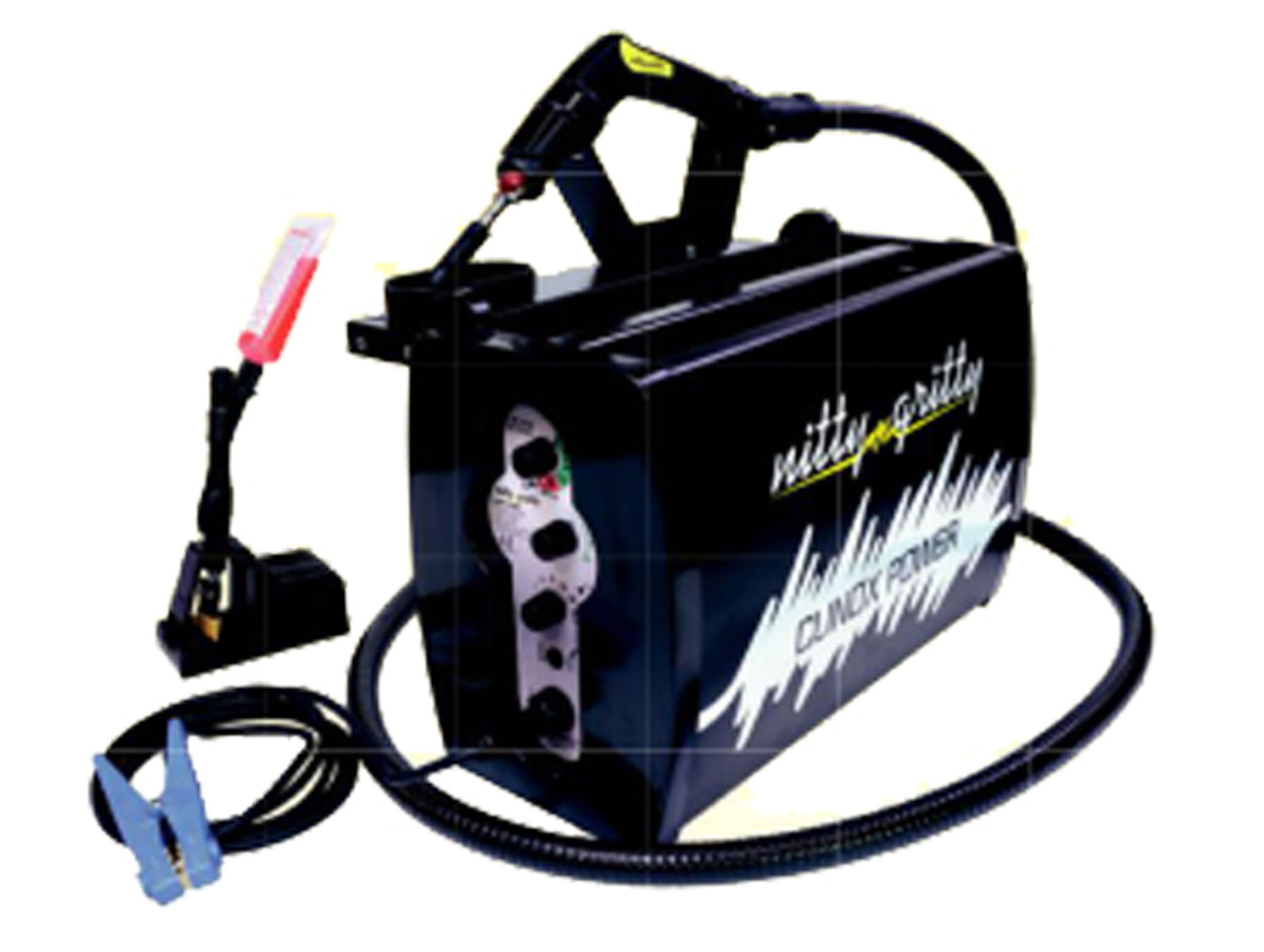

Clinox Power is the ideal solution for the immediate eco-friendly treatment to TIG, TIG with filler metal, MIG/MAG, pulsed-arc MIG, laser, resistance, orbital, and plasma welding. The advanced technology Clinox Power, through an immediate electrochemical reaction, ensures the pickling, passivation and polishing of any stainless steel weld, irrespective of the finishing, without wasting time, without leaving rings, and in complete safety for the operator.
Clinox Power is the professional system designed for companies which need high productivity: thanks to the Inverter technology, it ensures an actual productivity of 96% instead of 44%, for transformer-fitted machines), and it is the only machine fitted with: patented large torch with electrolyte automatic transmission; vapor blowing system; fast interchange of optional inserts; tank with level-marker for pickling solution; automatic pump to dose liquid; patented second torch with manual dosing integrated tank, able to work simultaneously with the larger torch, thus doubling the productivity; and brush to reach more easily the least accessible points.
Furthermore, Clinox Power, like many other Clinox machines, allows the marking and the localized electric discharge machining (white marking) for stainless steel, galvanized steel, chrome steel, carbon steel, aluminium, brass, chrome plastic, copper, and titanium.
Clinox Power, Nitty Gritty Clinox Power, Nitty Gritty Clinox Rec. Sole Channel Partner For SAARC Countries - Afghanistan, Bangladesh, Bhutan, India, Maldives, Nepal, Pakistan, Sri Lanka
Technical Data :
Voltage Voltaggio /Voltage/Voltaje/Spannung |
220/240 V |
Frequency Frequenza/Frequence/Frequencia/Frequenz |
50/60 Hz |
Power Potenza/Poissance/Potencia/Strom |
900 W |
Voltage output Voltaggio in uscita/Voltage electrode/ Voltage electrode/Spannung auf spitz |
10/30 V AC/DC |
Insulation class Classe di isolamento/Classe d’isolation/ Clase de aislamiento/Isolierung |
IP20 |
Tank capacity Capacità della tanica/Capacité du réservoir/Capacidad del tanque/Aufnahmfahigkeit |
1,8 L |
Weight Peso/Poids/Peso/Gewicht |
20 kg |
Dimensions Dimensioni/Dimensions/Dimensiones/ Maße |
230x315x545 mm |
Ground cable lenght Lunghezza del cavo di massa/Longueur du cable de la torche/Largo del cable de masa/Lange erogkabel |
3 mt |
Torch cable lenght Lunghezza del cavo di massa/Longueur du cable de la torche/Largo del cable de masa/Lange erogkabel |
4, 8 mt |
Torch Torcia/Torche/Antorcha/Brenner |
Blowing |
Motor Motore/Moteur/Motor/Motor |
No |
Pump regulation Regolazione pompa/Reglage de la pompe/Bomba regulation/Pumpe regulierung |
Yes |
Voltage regulation Regolazione del voltaggio/Reglage du voltage/Voltage regulacion/Spannung regulierung |
Automatic |
Current regulation Regolazione della corrente/Reglage courant/Corriente regulation/Strom regulierung |
0 ÷ 30 Amp. 4 Positions |
Brush Pennello/Pinceau/Pincel/Pinsel |
Power Brush |
Cleaning Decapaggio/Decapage/Decapado/Beizen |
AC - 30V |
Polishing Lucidatura/Polissage/Pulido/Polierung |
DC - 20V |
Marking Marcatura/Marquage/Marcado/Markierung |
AC - Black - 12V, DC - White - 12V |
