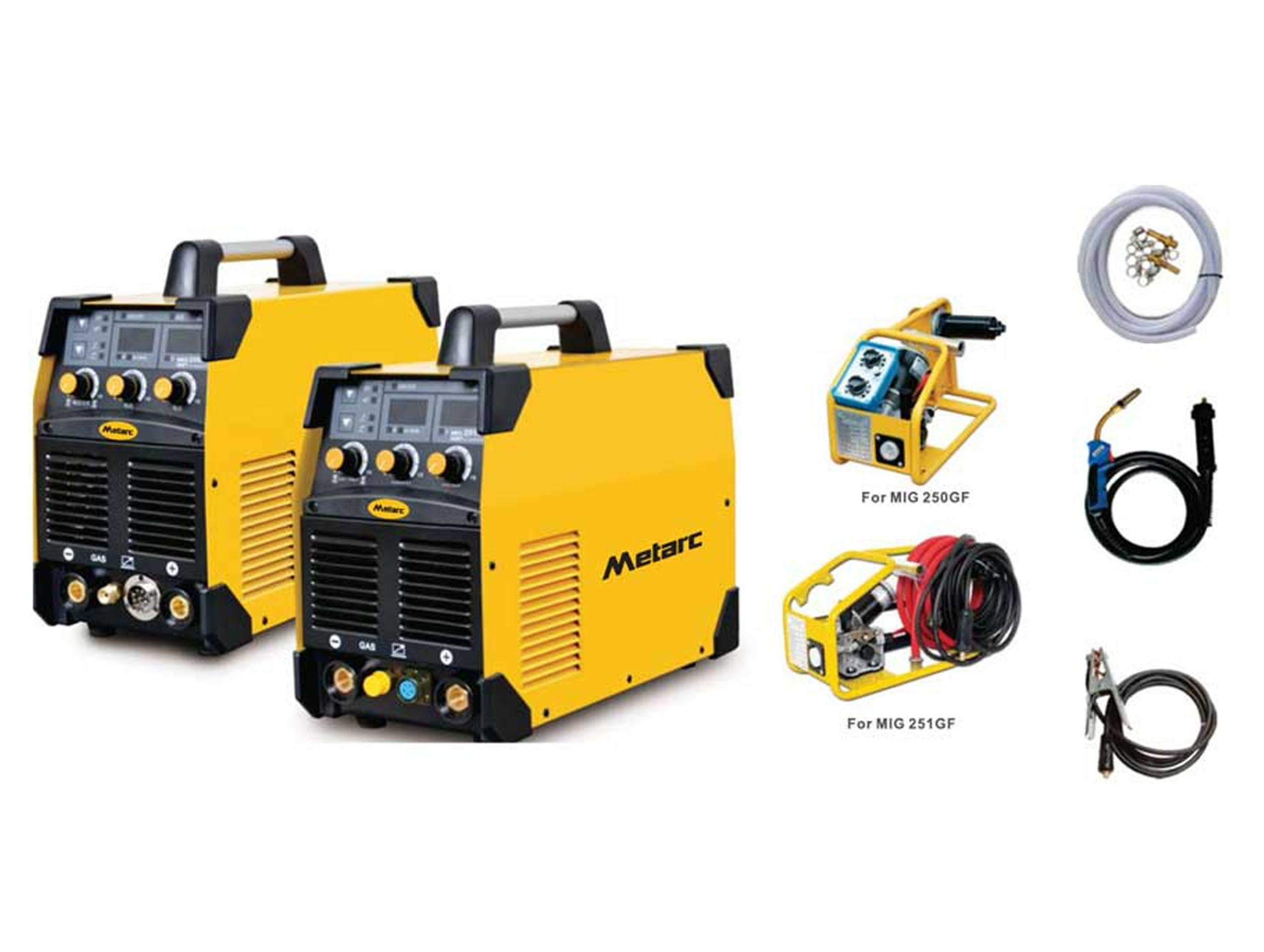

Metarc MIG 250GF/251GF / Supplier And Exporter
Light Industrial, Separated ... The priority selection for movable workspace.
Processes:
• MIG
• MIG/ Gasless
• MMA
Package includes:
• Inverter Power Source
• MIG Torch 3m
• Earth Clamp 3m
• Hose 3m
• Hose Clamp 2 pcs
Optional Accessories:
• Electrode holder 3m
• Helmet
Features:
• Wire inching on wire feeder (MIG 250GF)
• Tri-proof Air duct design.
• Current, Voltage and inductance adjustable
• 2T/4T
• Wire inching on wire feeder
• Compatible with 15kg (300mm) wire spool
Technical Data :
| Model | Input Voltage/ Phase / Frequency |
Output current/ Voltage /Duty cycle (400 °c) |
Amps input at Rated output |
Output range / OCV | Dimension | Weight (kg) |
| MIG 250GF | 380V/3P/50-60hz | MIG: 250A/26.5V/30% 180A/23V/100% MMA: 250A/30V/30% 180A/27.2V/100% |
MIG: 14A@250A MMA: 16A@250A |
MIG: 40-250A/56V MMA: 60-250A/56V |
468*245*478 | 17.3 |
| MIG 251GF | 220V/1P/50-60hz | MIG: 200A/24V/40% 130A/20.5V/100% MMA: 160A/26.4V/40% 105A/24.2V/100% |
MIG: 14A@250A MMA:16A@250A |
MIG: 50-200A/56V MMA: 40-160A/56V |
468*245*478 | 15.4 |
