Metarc ARC Welder / Supplier And Exporter

Metarc TIG 250A/300A Supplier And Exporter

Industrial, Classical DC, Pulse ... Devoted in Welding Stainless steel


Processes:
• DC TIG
• MMA

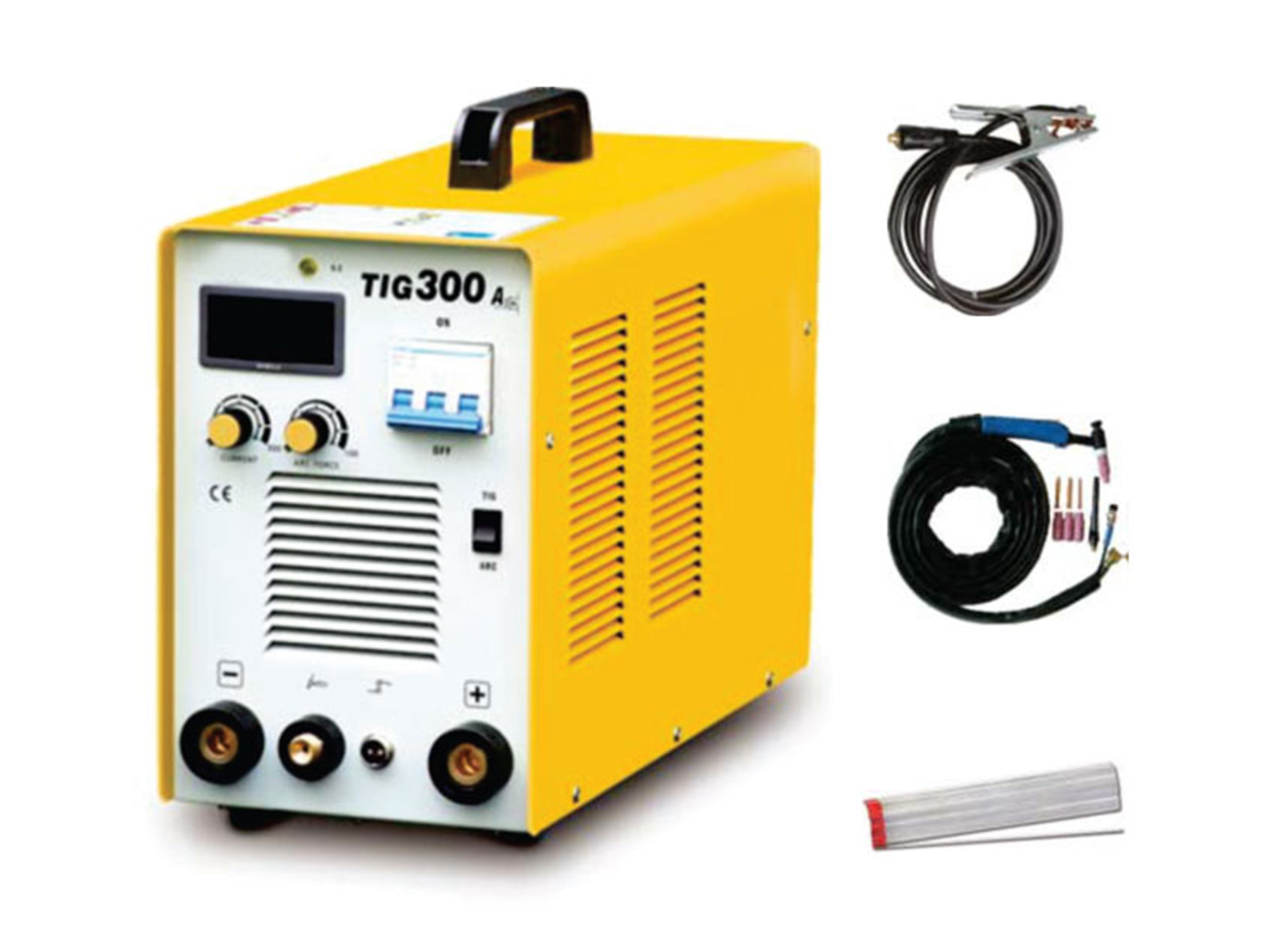

Package includes:
• Inverter Power Source
• TIG Torch 4m
• Earth Clamp 3m
• Tungsten Electrode, cerium-tungsten

Optional Accessories:
• Electrode holder 3m
• Helmet

Features: • Arc Force adjustable
• The success rate of arc striking is up to more than 99%

Technical Data :

Model Input Voltage/
Phase / Frequency
Output current/ Voltage
/Duty cycle (400 °c)
Amps input at
Rated output
Output range / OCV Dimension Weight (kg)
TIG 250A 220V/1P/50-60hz TIG: 210A/18.4V/40% 150A/16V/100%
MMA: 210A/28.4V/40% 150A/26V/100%
TIG: 35.9A@210A
MMA: 59.8A@210A
TIG: 15-210A/63V
MMA: 15-210A/63V
505*203*375 19
TIG 300A 380V/3P/50-60hz TIG: 230A/19.2V/40% 160A/16.4V/100%
MMA: 230A/29.2V/40% 160A/26.4V/100%
TIG: 12.7A@230A
MMA: 21A@230A
TIG: 15-210A/63V
MMA: 15-210A/63V
505*203*375 19
