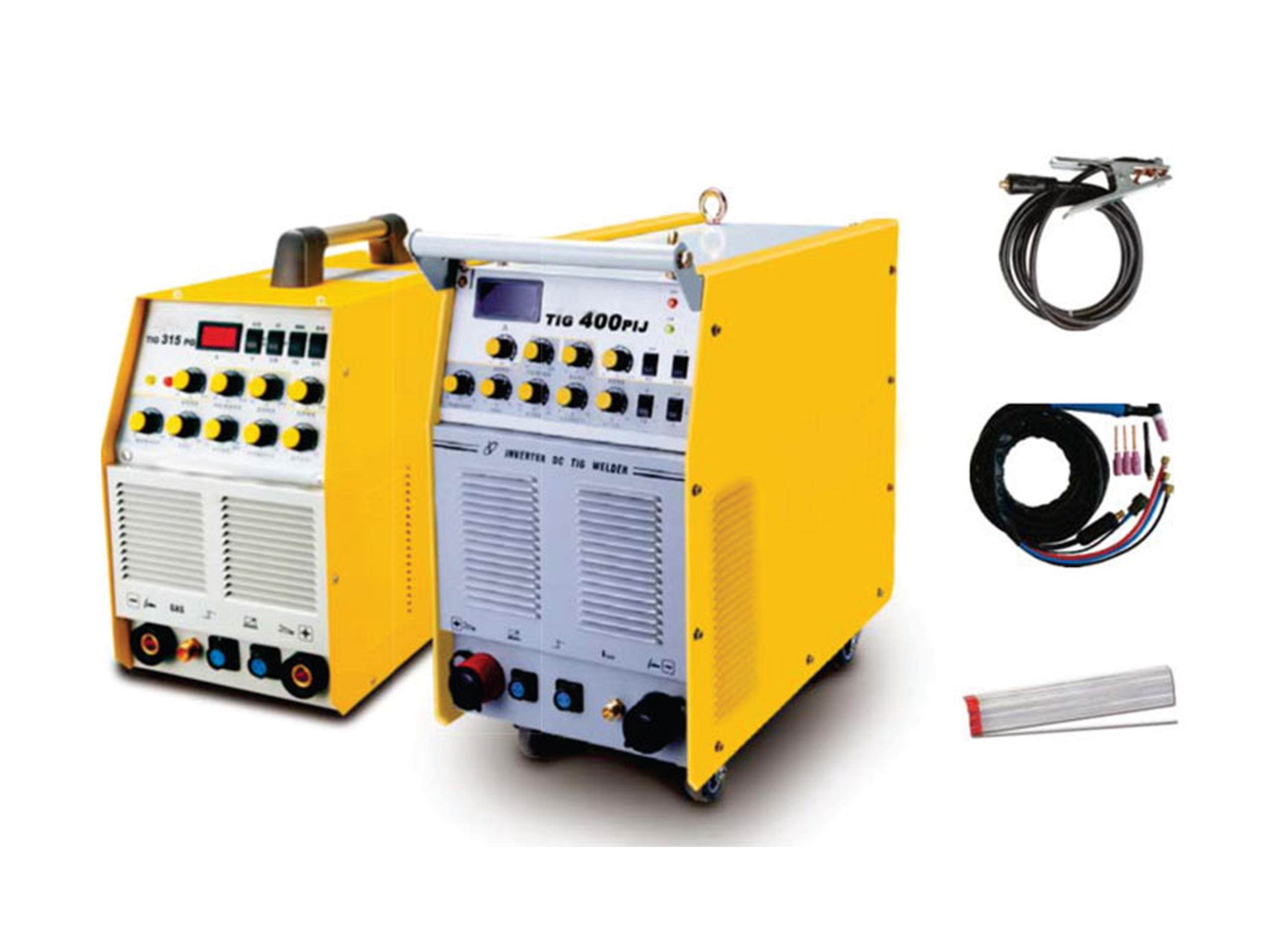

Metarc TIG 315PG, 400PIJ, 500PIJ Supplier And Exporter
Heavy Industrial, Classical DC, Pulse ... Good hand in Welding heat control
Processes:
• DC TIG
• Pulse TIG
• MMA
• Remote Control
Package includes:
• Inverter Power Source
• TIG Torch 4m
• Earth Clamp 3m
• Tungsten Electrode, cerium-tungsten
Optional Accessories:
• Electrode holder 3m
• Helmet
• Water Cooler
• Foot Control Pedal
Features:
• Pulse frequency and Pulse width adjustable
• 2T/4T/REP
• Post flow adjustable
• Up-slope and down slope adjustable
• Peak current and background current adjustable
• Start current and crater current adjustable
• Tri-proof Air duct design
Technical Data :
| Model | Input Voltage/ Phase / Frequency |
Output current/ Voltage /Duty cycle (400 °c) |
Amps input at Rated output |
Output range / OCV | Dimension | Weight (kg) |
| TIG 315PG | 380V/3P/50-60hz | TIG: 315A/22.6V/40% 244A/19.8V/100% MMA:245A/29.8V/40% 190A/27.6V/100% |
TIG: 15.5A@315A MMA: 15A@245A |
TIG: 15-315A/59V MMA: 15-245A/59V |
485*234*425 | 25 |
| TIG 400PI | 380V/3P/50-60hz | TIG: 400A/26V/60% 310A/22.4V/100% MMA:400A/36V/40% 310A/32.4V/100% |
TIG: 25.3A@400A | TIG: 10-400A/80V MMA: 20-400A/80V |
547*562*291 | 30 |
| TIG 500PIJ | 380V/3P/50-60hz | TIG: 500A/30V/40% 380A/25.2V/100% MMA:400A/36V/40% 310A/32.4V/100% |
TIG: 30A@500A MMA: 25A@400A |
TIG: 25-500A/59.3V MMA: 25-400A/59.3V |
760*380*820 | 30 |
