Tri Tool PVDF Pipe Cutting

Tri Tool PVDF Pipe Cutting

Revolutionizing Plastic Pipe Cutting: Faster, Safer and More Efficient!

The new PolySever 6 is the future of PVDF and polypropylene pipe cutting, delivering unmatched speed, safety, and efficiency. Designed for single-operator use, it cuts plastic pipes in under 90 seconds with no heavy labor required. Its compact, portable design makes it ideal for many cleanroom environments, while its advanced cutting technology eliminates micro-fracturing, ensuring perfect, crack-free results every time. With high precision and consistency, the new PolySever 6 reduces material waste and drastically lowers labor costs. Trusted across industries like semiconductor manufacturing, pharmaceuticals, HVAC, and water treatment, it sets a new standard for fast, reliable, and contamination-free pipe severing.

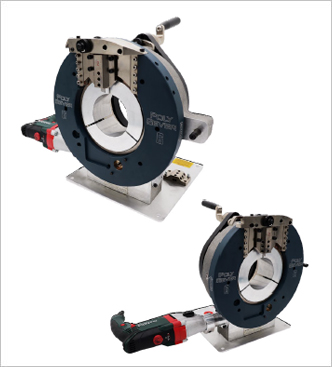

New PolySever 6 Plastic Pipe Cutter

• Cuts PVDF & Polypro pipes in under 90 seconds
• 1.5" to 6" PVDF or Polypro pipe [50 mm - 160 mm]
• OD Mount Machine
• Single-operator use - no heavy labor required!
• Fully enclosed gears for operator safety
• Portable & compact design perfect for cleanroom environments
• Eliminates micro-fracturing to ensure perfect, crack-free cuts
• High precision & consistency - no more errors or wasted material
• Drastically reduces labor costs for higher efficiency & lower expenses
• Rental options available

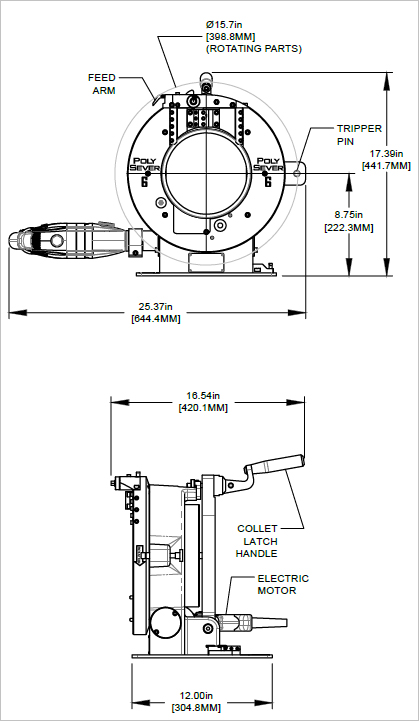

Dimensions




The PolySever 6 System Comes Complete With:

• PolySever 6 Sub-Assembly
• Electric Motor Assembly
• Bench Stand
• Wrench Kit
• Operator's Manual

Weight:

• 90 lbs (40.8 kg)

Cut Capacity:

• Severing of PVDF and Polypropylene piping upto .58" (14.7 mm) wall thickness, 1.5" to 6" PVDF or Polypro pipe [50 mm - 160 mm]
• Optional extended tool holder available for .5" to 1.25" (20 mm - 40 mm) pipe

Material Capabilities:

• PVDF & Polypropylene piping

Drive System

• Electric Motor

Feed:

• Autofeed system adjustment from .003" (0.08 mm) to .015" (0.38 mm) per revoluton.

Mounting:

• Manually actuated collet clamping system

Motor:

• 110 VAC, 50/60 Hz, 9.6 A
• 220 VAC, 50/60 Hz, 5.7 A

Available Accessories:

• SQM-2AC Squaring Module Kit (P/N 05-0320)
• Extended Tool Holder #3 (49-0326)
• (For severing plastic pipes below 1.5")
