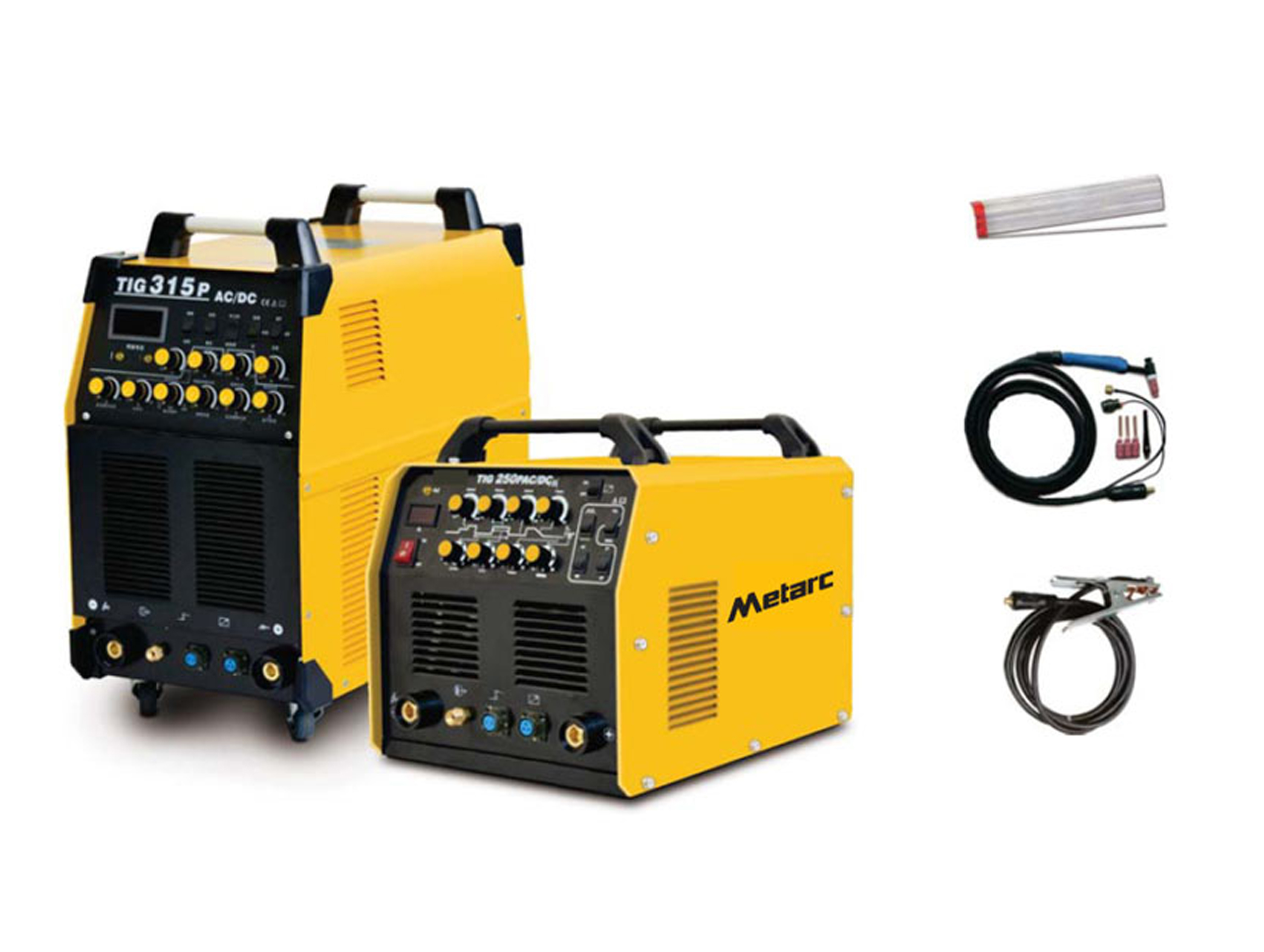

Metarc TIG 200PAC, DC, 250PAC, DC II & 315PAC, DC Supplier And Exporter
Industrial, Classical AC/DC, Pulse ... Full function and also expert in Welding Aluminium
Processes:
• DC TIG
• AC TIG
• Pulse TIG
• MMA
• Remote Control
Package includes:
• Inverter Power Source
• TIG Torch 4m
• Earth Clamp 3m
• Tungsten Electrode, cerium-tungsten
Optional Accessories:
• Electrode holder 3m
• Foot Control Pedal
• Helmet
Features:
• AC/DC Selectable
• Pulse frequency and Pulse width adjustable
• Ac Balance adjustable
• 2T/4T
• Post flow adjustable
• Down Slope adjustable
• Start current and crater current adjustable
• Tri-proof Air duct design
Technical Data :
| Model | Input Voltage/ Phase / Frequency |
Output current/ Voltage /Duty cycle (400 °c) |
Amps input at Rated output |
Output range / OCV | Dimension | Weight (kg) |
| TIG 200PAC/DC | 220V/1P/50-60hz | TIG: 200A/18V/60%@20°C 155A/16.2V/100%@20 °C MMA:200A/28V/60%@20°C 155A/26.2V/100%@20 °C |
TIG: 28A@200A MMA: 43.5A@200A |
TIG: 10-200A/56V MMA: 10-200A/56V |
498*328*365 | 20 |
| TIG 250PAC/DCII | 220V/1P/50-60hz | TIG: 10A/18.4V/30%@40°C 150A/16V/100%@40 °C MMA:160A/26.4V/30%@40°C 120A/24.8V/100%@40 °C |
TIG: 36.5A@210A MMA: 35.4A@160A |
TIG:10-210A/96V(AC)/68V(DC) MMA: 10-160A/60V |
476*340*402 | 20 |
| TIG 315PAC/DC | 380V/3P/50-60hz | TIG: 300A/22V/20%@40 °C 230A/19.2V/100%@40 °C MMA:240A/29.6V/60%@40 °C 220A/28.8V/100%@40 °C |
TIG: 17.2A@300A MMA: 15.5A@240A |
TIG: 12-300A/62V MMA: 15-240A/62V |
609*332*662 | 38 |
