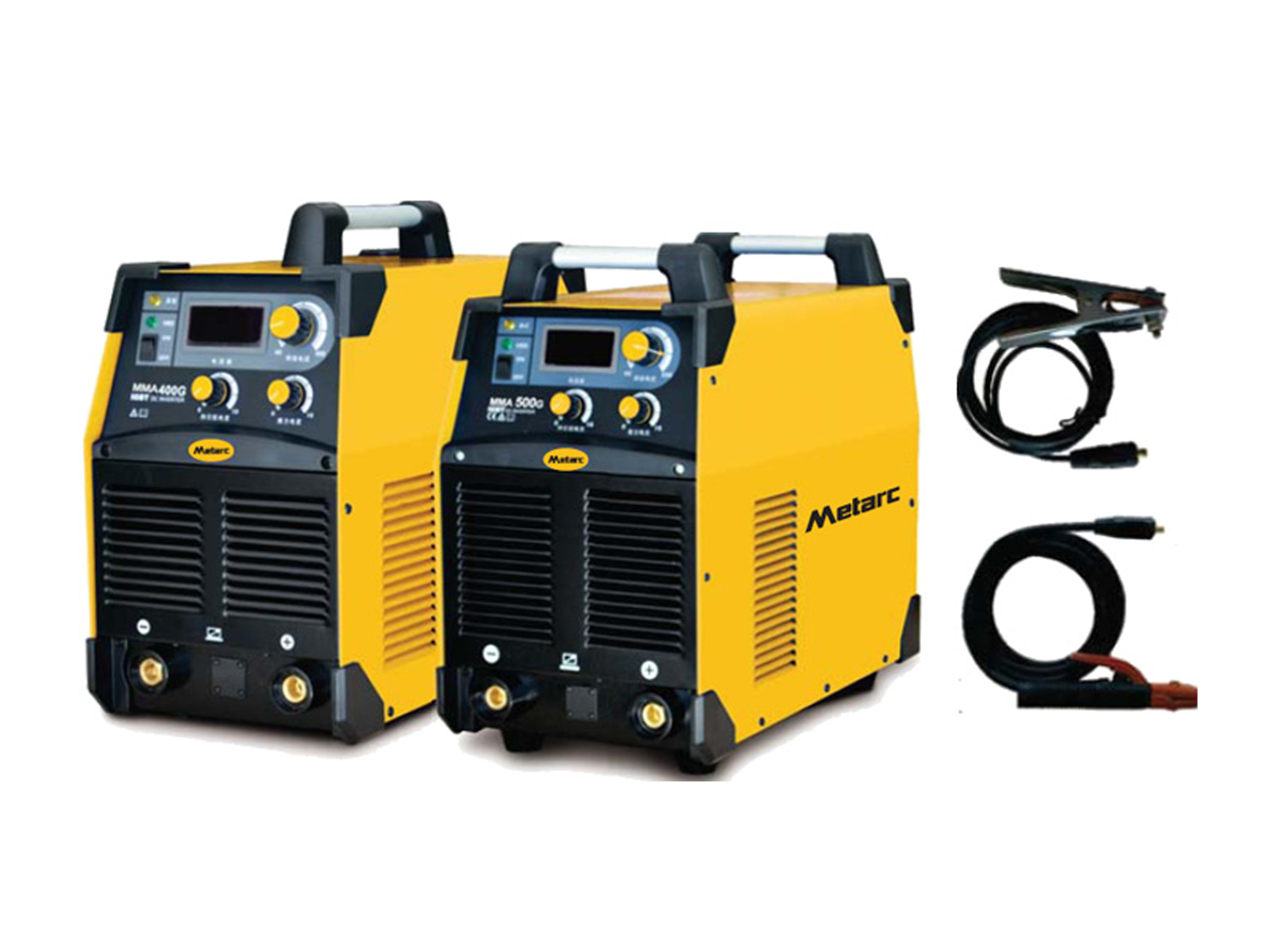

Metarc ARC 315G/400g/500g Supplier And Exporter
Industrial, Classical ... The priority selection for Engineering fabrication industry
Processes:
• MMA
• Remote Control optional
Package includes:
• Inverter Power Source
• Electrode Holder 3m
• Earth Clamp 3m
Optional Accessories:
• Quick Plug
• Wrench
• Remote Control
• Helmet
Features:
• Tri-proof Air duct design.
• VRD adjustable.
• Arc Force adjustable.
• Hot start adjustable.
• Recommend for 5.0mm Electrode
• Suitable for acid Electrode Basic Electrode, and Cellulosic Electrode
Technical Data :
| Model | Input Voltage/ Phase / Frequency |
Output current/ Voltage /Duty cycle (400 °c) |
Amps input at Rated output |
Output range / OCV | Dimension | Weight (kg) |
| MMA 315G | 380V/3P/50-60hz | MIG: 280A/31.2V/40% 180A/27.2V/100% |
17A@280A | 40-280A/65V/17V/(VRD) | 426*212*357 | 15 |
| MMA 400G | 380V/3P/50-60hz | MIG: 380A/35.2V/40% 253A/30.1V/100% |
27.7A@380A | 40-380A/62V/17V/(VRD) | 485*234*425 | 22 |
| MMA 500G | 380V/3P/50-60hz | MIG: 480A/39.2V/40% 304A/32.2V/100% |
36.2A@480A | 40-480A/68V/17V/(VRD) | 515*262*468 | 26 |
