Weld Cleaning Machines

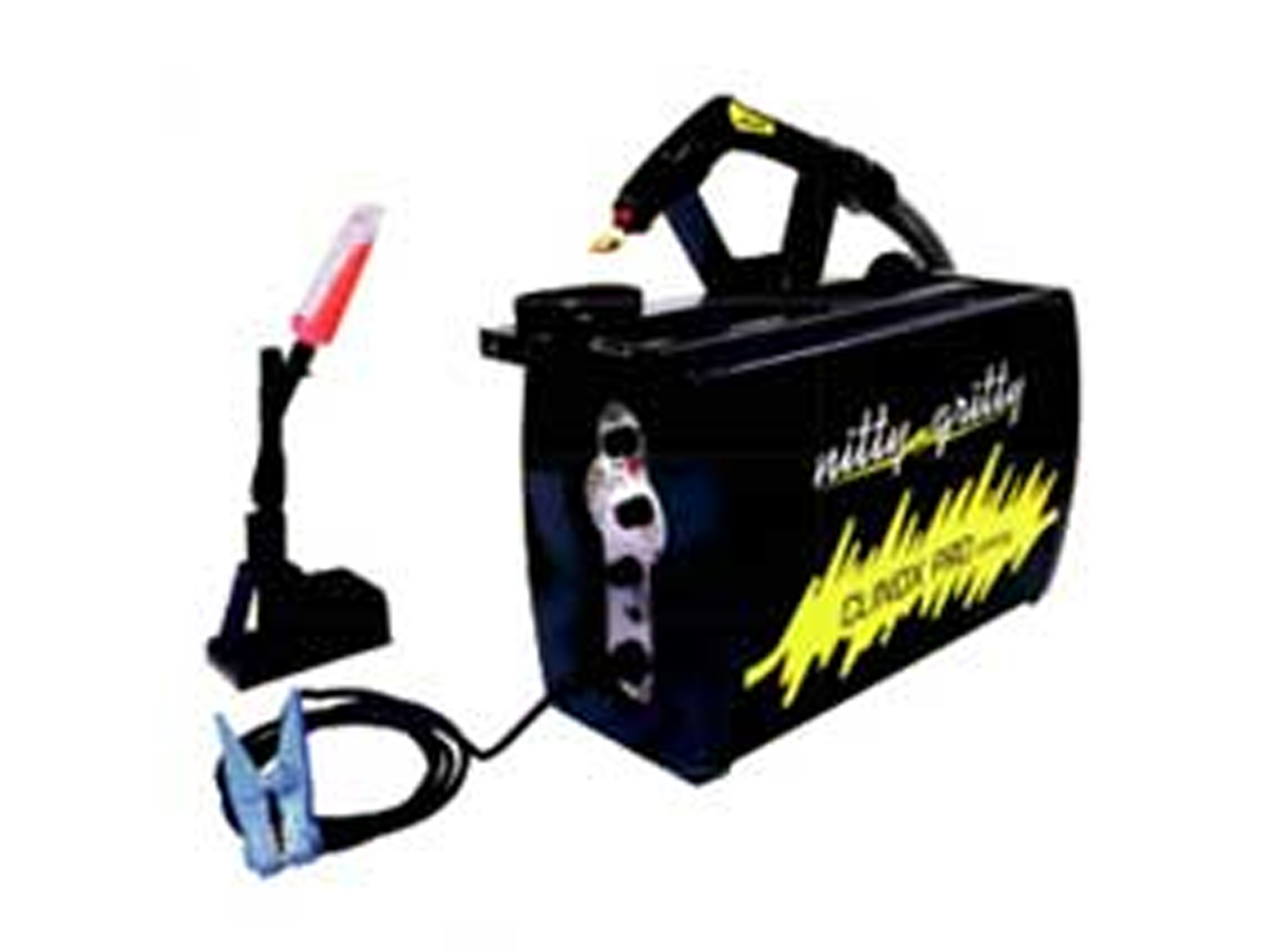

Clinox Pro Energy is the solution designed for the immediate eco-friendly treatment to TIG, pulsed-arc MIG, laser, resistance, orbital, plasma, and tack welding. The advanced technology Clinox Pro Energy, through an immediate electrochemical reaction, ensures the pickling, passivation and polishing of any stainless steel weld, irrespective of the finishing, without wasting time, without leaving rings, and in complete safety for the operator.
The professional system Clinox Pro Energy, thanks to the Inverter technology, ensures an actual productivity of 96% (instead of 44%, for transformer-fitted machines), and it is fitted with: patented large torch with electrolyte automatic transmission; vapor suction system; fast interchange of optional inserts; tank with level-marker for pickling solution; automatic pump to dose liquid; patented second torch with manual dosing integrated tank, able to work simultaneously with the larger torch, thus doubling the productivity; and brush to reach more easily the least accessible points.
Furthermore, Clinox Pro Energy, like many other Clinox machines, allows the marking and the localized electric discharge machining (white marking) for stainless steel, galvanized steel, chrome steel, carbon steel, aluminium, brass, chrome plastic, copper, and titanium.
Clinox Pro Energy, Clinox Pro, Nitty Gritty Clinox Pro. Sole Channel Partner For SAARC Countries - Afghanistan, Bangladesh, Bhutan, India, Maldives, Nepal, Pakistan, Sri Lanka
Technical Data :
Voltage Voltaggio /Voltage/Voltaje/Spannung |
220/240 V |
Frequency Frequenza/Frequence/Frequencia/Frequenz |
50/60 Hz |
Power Potenza/Poissance/Potencia/Strom |
1100W 450W (inverter board) + 650W (motor) |
Voltage output Voltaggio in uscita/Voltage electrode/ Voltage electrode/Spannung auf spitz |
10/30 V AC/DC |
Insulation class Classe di isolamento/Classe d’isolation/ Clase de aislamiento/Isolierung |
IP20 |
Tank capacity Capacità della tanica/Capacité du réservoir/Capacidad del tanque/Aufnahmfahigkeit |
1,8 L |
Weight Peso/Poids/Peso/Gewicht |
20 kg |
Dimensions Dimensioni/Dimensions/Dimensiones/ Maße |
230x315x545 mm |
Ground cable lenght Lunghezza del cavo di massa/Longueur du cable de la torche/Largo del cable de masa/Lange erogkabel |
3 mt |
Torch cable lenght Lunghezza del cavo di massa/Longueur du cable de la torche/Largo del cable de masa/Lange erogkabel |
4 mt |
Torch Torcia/Torche/Antorcha/Brenner |
Suction |
Motor Motore/Moteur/Motor/Motor |
Yes |
Pump regulation Regolazione pompa/Reglage de la pompe/Bomba regulation/Pumpe regulierung |
Yes |
Voltage regulation Regolazione del voltaggio/Reglage du voltage/Voltage regulacion/Spannung regulierung |
Automatic |
Current regulation Regolazione della corrente/Reglage courant/Corriente regulation/Strom regulierung |
0 ÷ 30 Amp. 4 Positions |
Brush Pennello/Pinceau/Pincel/Pinsel |
Pro Brush |
Cleaning Decapaggio/Decapage/Decapado/Beizen |
AC - 30V |
Polishing Lucidatura/Polissage/Pulido/Polierung |
DC - 20V |
Marking Marcatura/Marquage/Marcado/Markierung |
AC - Black - 12V, DC - White - 12V |
