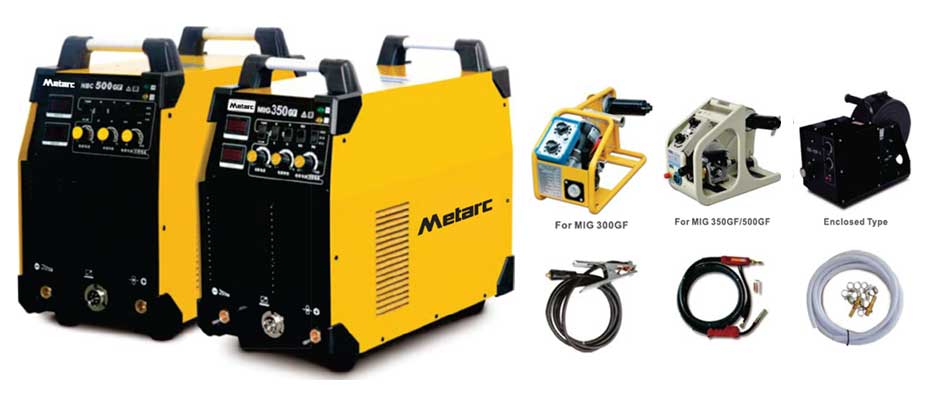

Metarc MIG 300 GF/350 GF/500 GF / Supplier And Exporter
Industrial, Separated ... The priority selection for steel construction & Engineering fabrication.
Processes:
• MIG
• MIG/ Gasless
• MMA
Package includes:
• Inverter Power Source
• MIG Torch 3m
• Earth Clamp 3m
• Hose 3m
• Hose Clamp 2 pcs
Optional Accessories:
• Electrode holder 3m
• Helmet
Features:
• Tri-proof Air duct design.
• Current, Voltage and inductance adjustable
• Wire Diameter selectable
• Wire type Selectable
• Gas purge
• Wire inching on wire feeder
• Compatible with 15kg (300mm) wire spool
Technical Data :
| Model | Input Voltage/ Phase / Frequency |
Output current/ Voltage /Duty cycle (400 °c) |
Amps input at Rated output |
Output range / OCV | Dimension | Weight (kg) |
| MIG 300GF | 380V/3P/50-60hz | MIG: 300A/29V/35% 250A/26.5V/100% MMA: 300A/32V/20% 250A/30V/100% |
MIG: 18A@300A MMA: 19A@300A |
MIG: 50-300A/56V MMA: 70-300A/56V |
485*234*425 | 25 |
| MIG 350GF | 380V/3P/50-60hz | MIG: 350A/31.5V/35% 250A/26.5V/100% MMA: 350A/34V/30% 250A/30V/100% |
MIG: 24A@350A MMA: 25.8A@350A |
MIG: 60-350A/61V MMA: 40-350A/61V |
515*262*468 | 30 |
| MIG 350GF | 380V/3P/50-60hz | MIG: 450A/36.5V/40% 355AA/31.7V/100% MMA: 450A/38V/40% 355A/34.2V/100% |
MIG: 31.2A@450A MMA: 31.8A@450A |
MIG: 60-450A/61V MMA: 60-450A/61V |
515*262*468 | 30 |
