Offering you a complete choice of products which include High Purity Gas Regulators such as High Purity Gas Regulators Series 500, Extension Kits Mfold, Gas Supply Manifolds, Gas Supply Panels, Line Pressure Regulators, Cylinder Pressure Regulators and many more items.

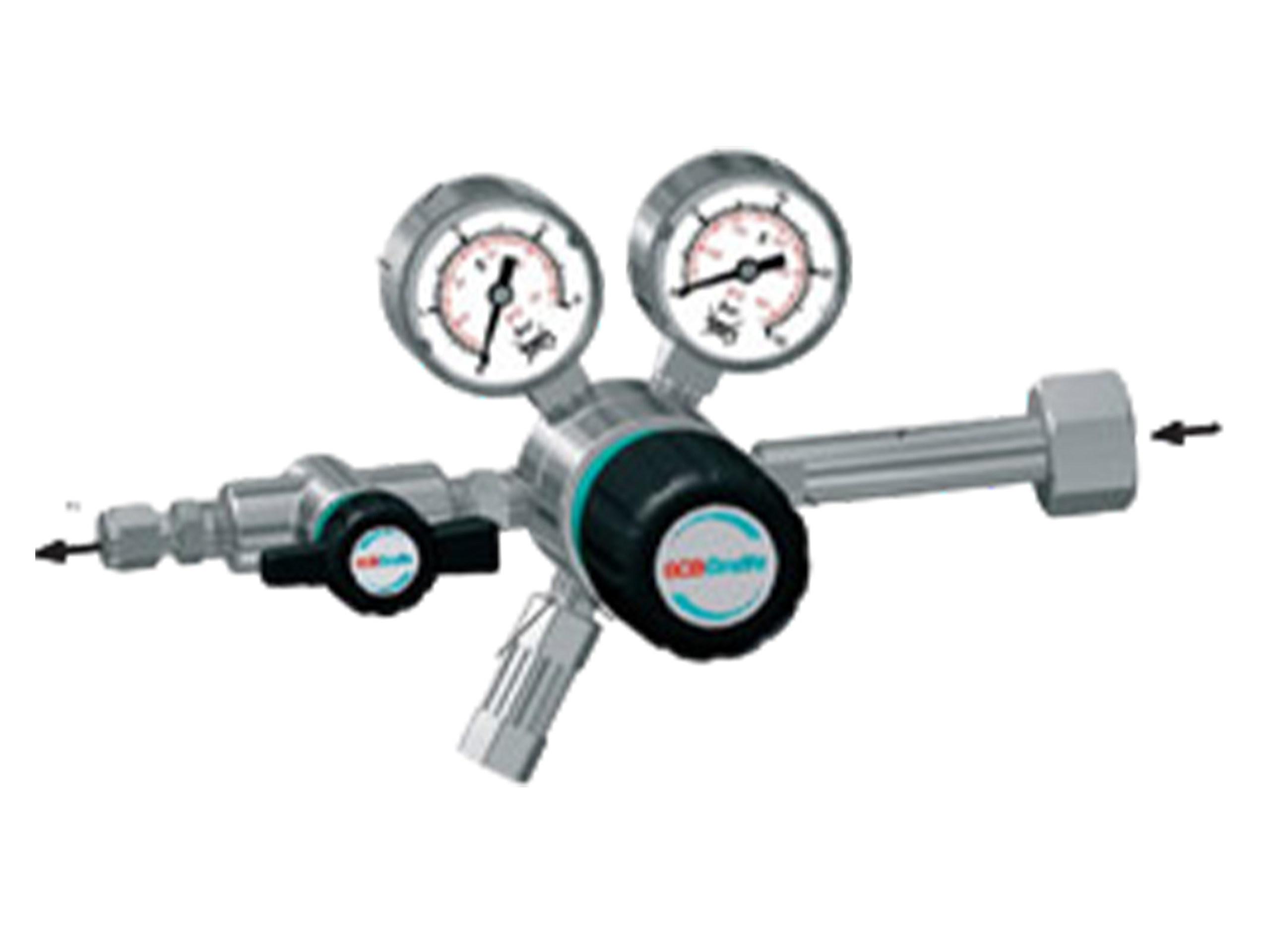

High Purity Gas Regulators Series 500

Body Material
Stainless steel 316L (1 4404) specially cleaned and electro-polished or brass CW614 (CuZn39Pb3) specially cleaned, nickel-plated and chrome-plated

Seal Material
PCTFE, FKM, EPDM, etc , dependant on gas specification and purity requirements Material is specified in “Technical data“

Inner Parts
Pressure regulator unit with integrated mesh filter from 10 μm mesh opening at inlet and 100 μm at outlet

Diaphragm
Good protection against burst and corrosion due to diaphragm material Hastelloy

Performance Data
See chart chapter at the end of this catalog, for different performance data please contact GCEDruVa
Inlet Pressure : 230 bar / 315 bar
Outlet Pressure : 0-3/0-6/0-10,5/0-28/0-50/0-200 bar

Extension Kits Manifold :

Extension kit consist of a NPT inlets, SS bar and NPT outlet to manifold. Upon request it can be equipped with non return valves and/or shut off valves on inlet. The extension kit is designed for safe handling of high purity gases.

Features :

  • For 300 bar cylinders
  • Cleaned for O2 service
  • ATEX compliant
  • Suitable for ECD service
  • Modular concept

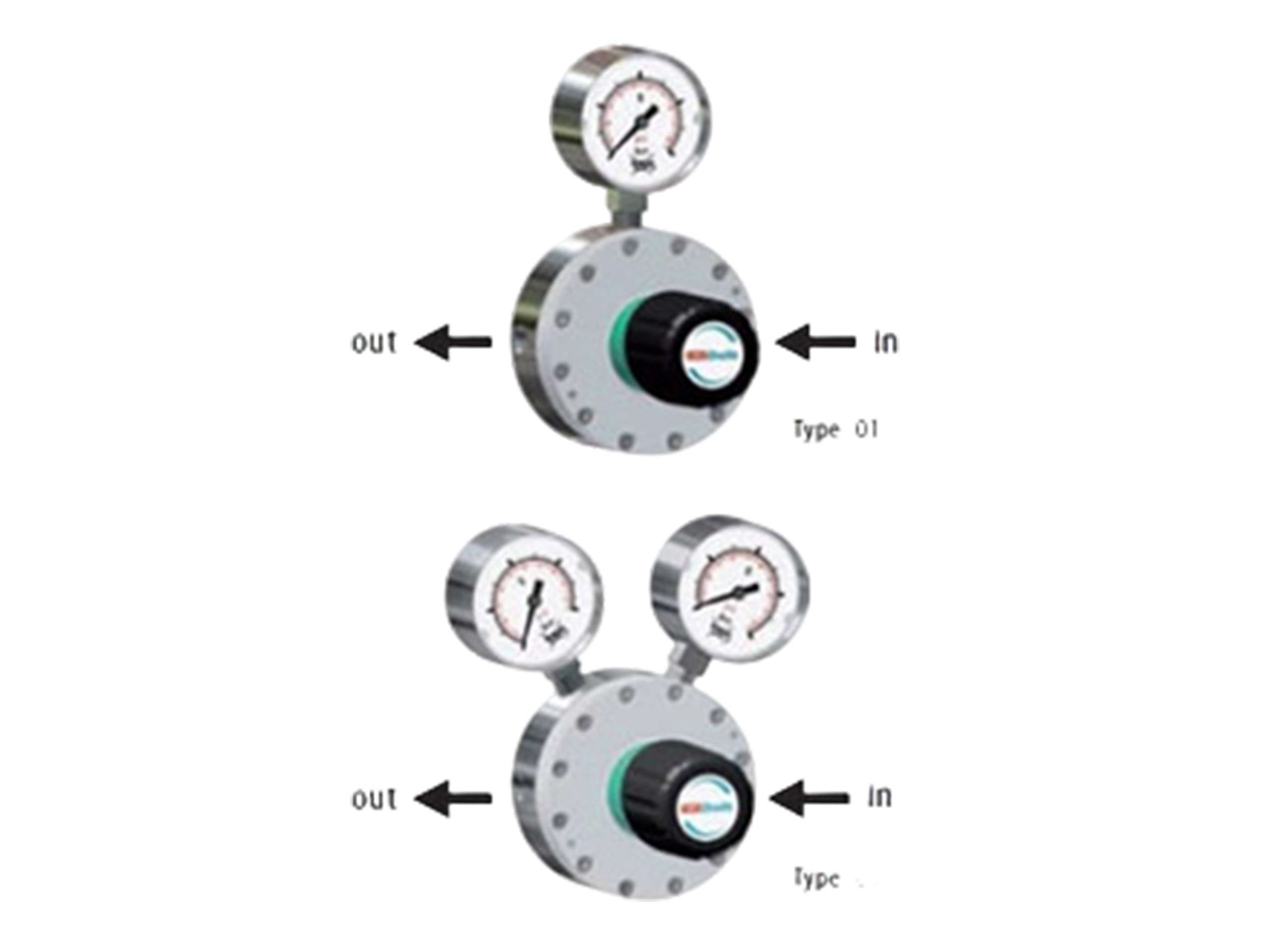

Line Pressure Regulators High Flow LMD 545-01/-03

The large housing diameter of these pressure regulators allows for a large metal diaphragm and with it a very fine adjustment of the downstream pressure by comparatively high flow rates of up to 0 02 bar. The Pressure regulator can be supplied in either 4-Port (LMD 545-01) or 6-Port (LMD 545-03) versions.

Features :

  • Low downstream pressure
  • Very fine adjustments possible
  • Higher Flow rates.

Line Pressure Regulators LMD 502-03/-05

This pressure regulator reduces the upstream pressure to a lower downstream pressure. The dual-stage design ensures the uniformity of the downstream pressure irrespectively of the upstream pressure. The use of contact gauge (accessories) in conjunction with alarm box (accessories) facilitates the monitoring of gas reserves. A broad application spectrum through the the multiple inlet/outlet connections.

Features :

  • Downstream pressure is independent of upstream pressure
  • Precise pressure allocation
  • Space saving multi-connection possibilities

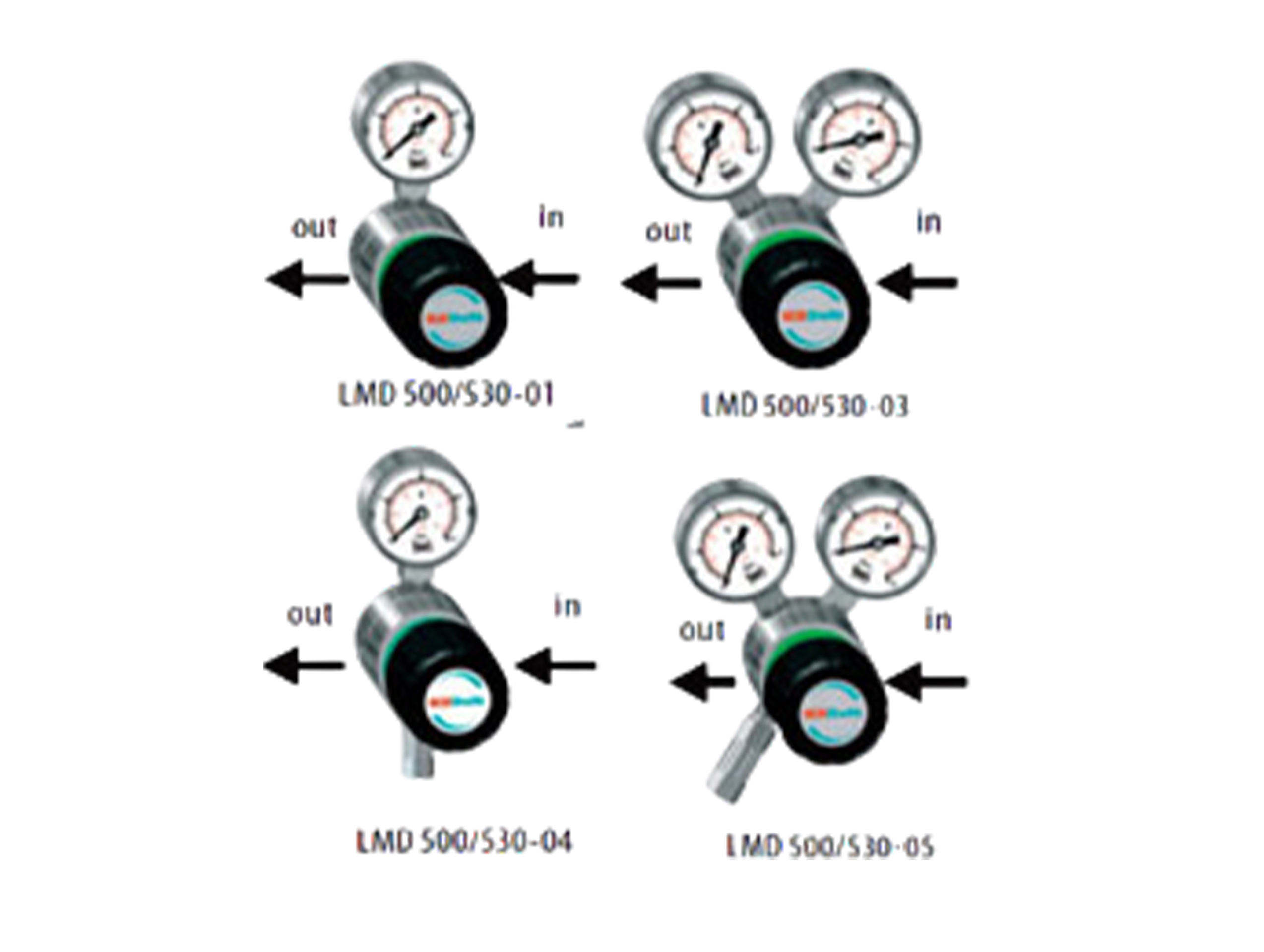

Line Pressure Regulators LMD 500/530-01/-03/-04/-05

A broad application spectrum through the 4-port configuration(type -01/-04) or 6-Port-configuration (type -03/05), which can be delivered respectively, with (type -04/-05) or without(type -01/-03) a relief valve With type-03 and type-05 the use of contact gauge (accessories) in conjunction with alarm box (accessories) facilitates the monitoring of gas reserves

Features :

  • Excellent pressure adjustment
  • Compact designs
  • 4 or 6 port configuration

Cylinder Pressure Regulators

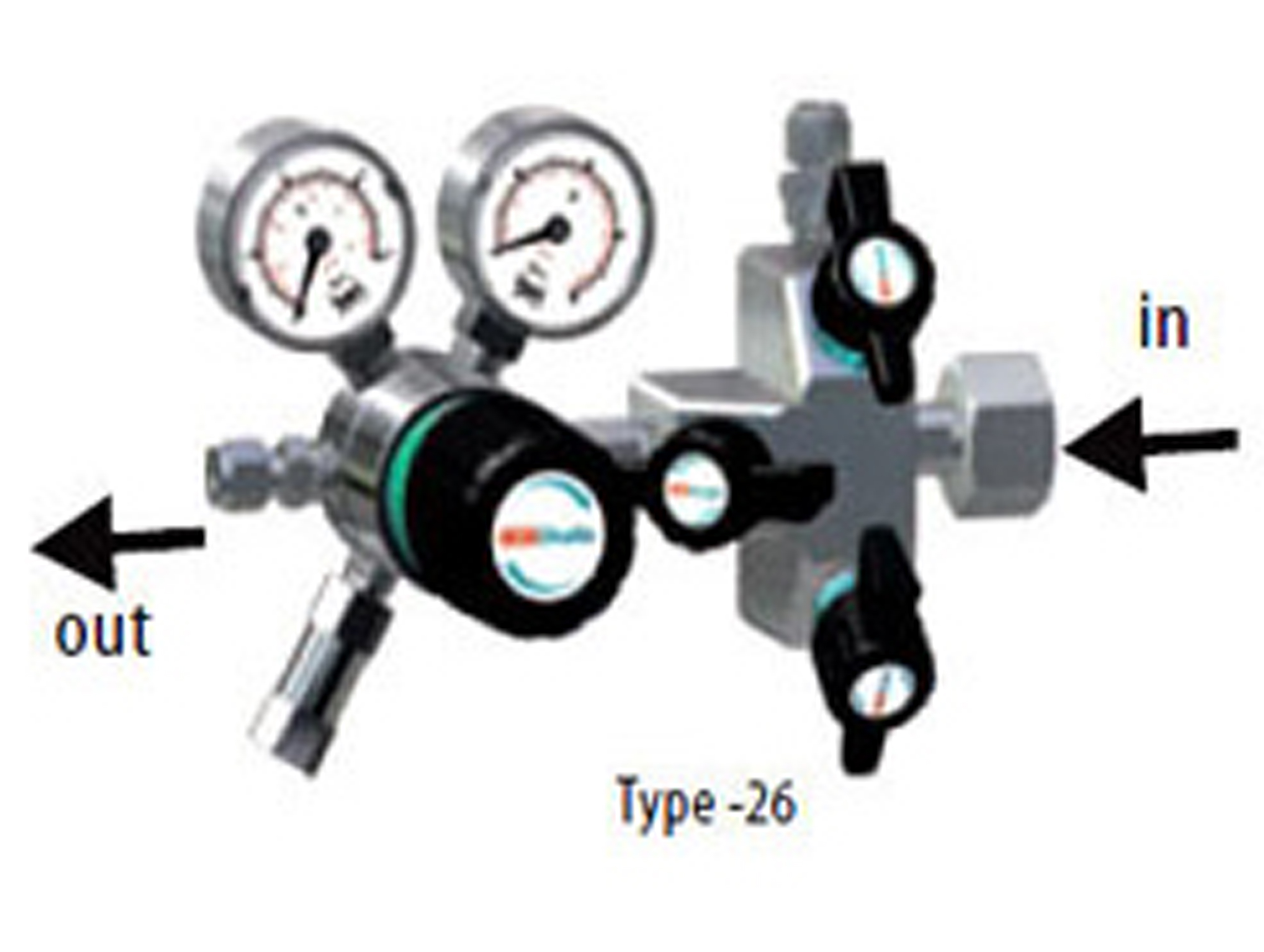

Cylinder Pressure Regulators FMD500-26/-27

Features :

  • Diaphragm shut-off valve
  • Diaphragm pressure regulators
  • ATEX compliant adjustment knobs
  • Optionally with sub-atmospheric pressure regulation (FMD 510)
  • Optional gas-tight welded connections for optimum purge conditions and maximum safety
