Pressure Regulators 300 Series

Pressure Regulators 300 Series

Prominent & Leading Importer and Distributor from Navi Mumbai, we offer Pressure Regulators 300 Series such as Cylinder Pressure Regulators, Line Pressure Regulators, Gas Supply Panels, Gas Supply Manifolds and Pressure Regulators.

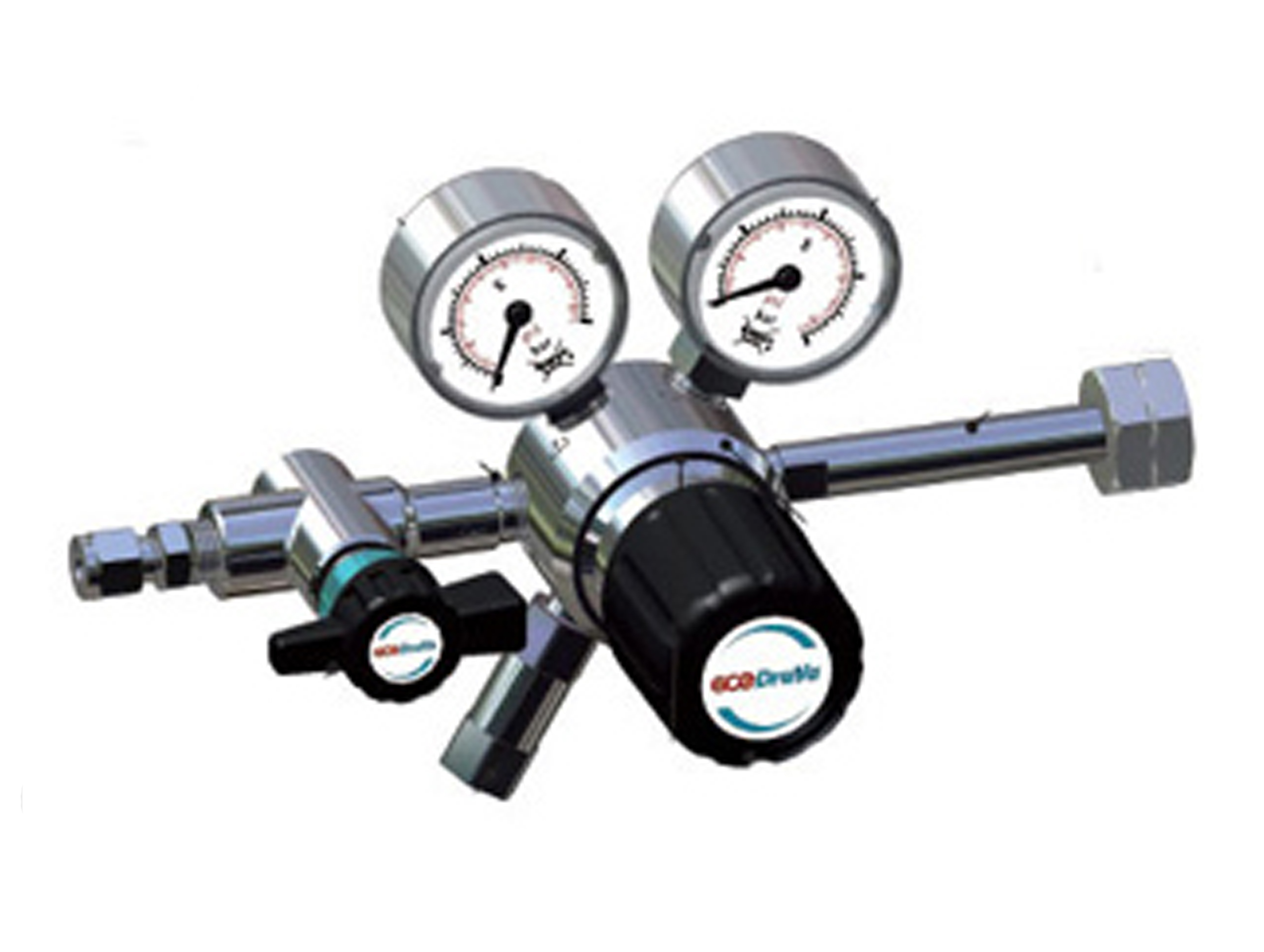

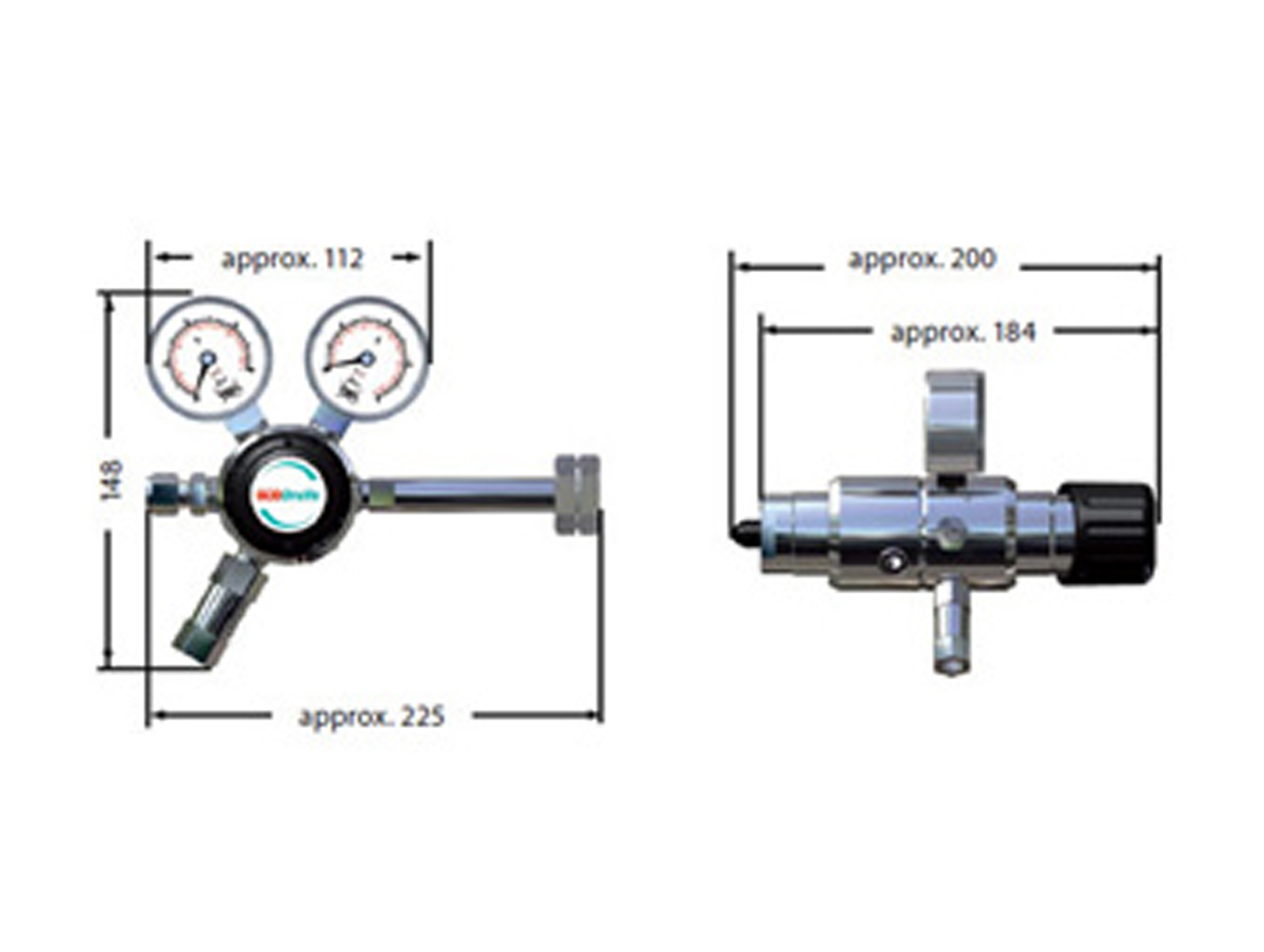

Cylinder Pressure Regulators

FMD 322-14/-16/-18

Features :

  • Downstream pressure is independent of the upstream pressure due to the dual-stage design
  • Diaphragm valve (FMD 322-16 with 90° shut-off function)
  • Pressure regulator with stainless steel diaphragm
  • ATEX conform adjustment knob
  • Gauge in safety version accordance with DIN EN 837

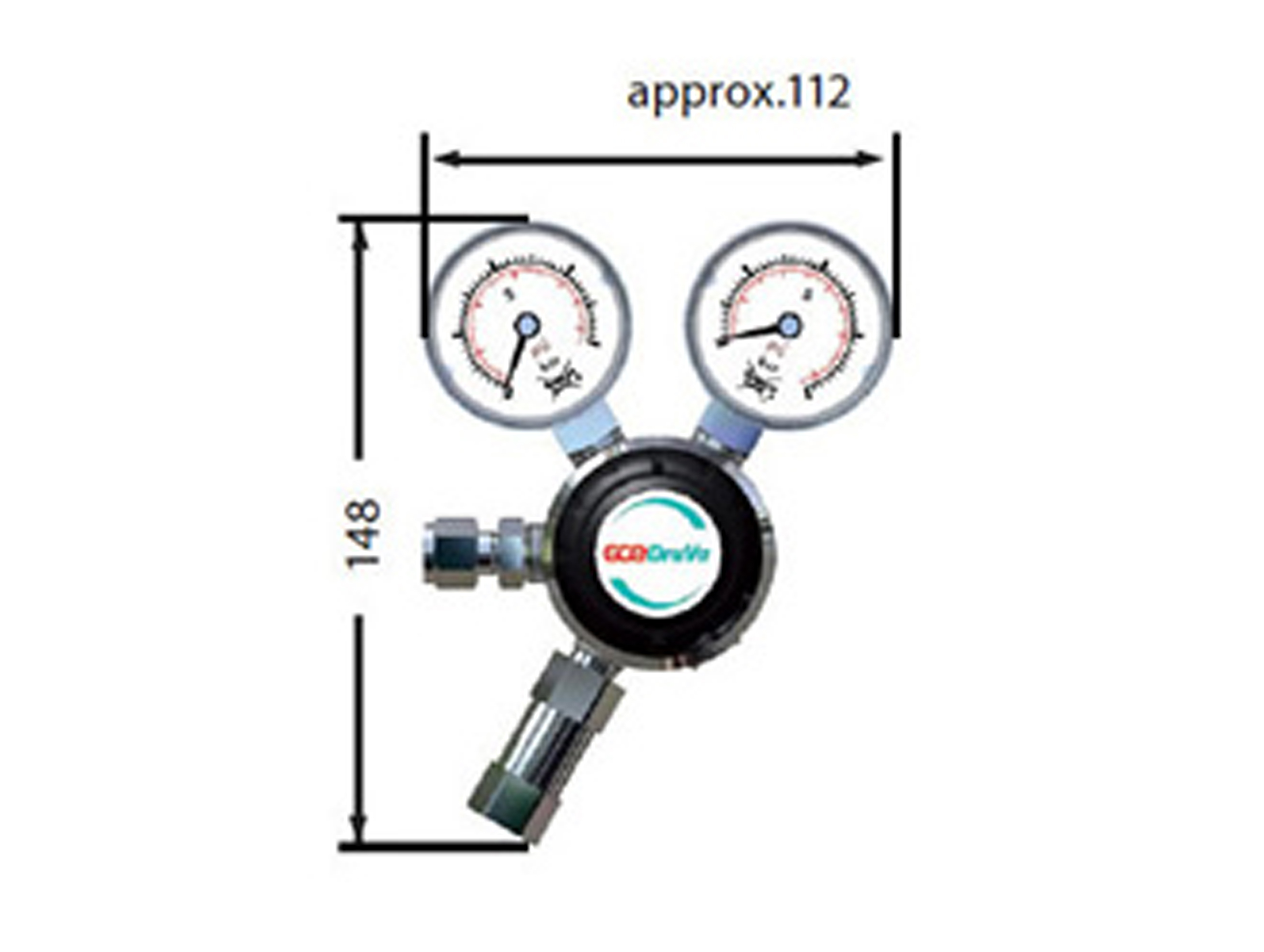

Line Pressure Regulators

LMD 320-01/-03/-04/-05

Features :

  • Excellent pressure adjustment
  • Compact design
  • 4 or 6 port configuration

Pressure Regulators

Pressure Regulators Series 320

Material
Body: stainless steel 316L (1.4404) specially cleaned or brass CW614 (CuZn39Pb3) nickel-plated and chrome-plated.

Sealing Material
PCTFE, PTFE, FKM etc., dependent upon gas specification and purity requirements. Material is specified in “Technical data“.

Inner Parts
Low maintenance, service friendly regulator unit, with a 10 µm particle filter on inlet and 100 µm on the outlet.

Diaphragm
The stainless steel material offers ample protection against damage and corrosion.

Performance Data
See performance charts on pages 3 and 4, for differing pressure ranges please contact GCE GmbH.
